MAX9107ESA+T - Analog Devices

Description: Analog Comparators 25ns, Dual/Quad/Single, Low-Power, TTL Comparators

Download MAX9107ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

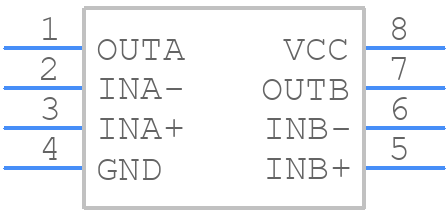

MAX9107ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9107ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2_8
click to zoom
3D Models
MAX9107ESA+T - Analog Devices - 3D model - Small Outline Packages - S8+2_8
click to zoom

MAX9107ESA+T Details

  • Manufacturer Part Number:

    MAX9107ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.35 µA

  • Bias Current-Max (IIB) @25C:

    0.35 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    25 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX9107ESA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9107ESA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX9107ESA+T has a thermal pad on the bottom of the package that should be connected to a thermal plane on the PCB. This helps to dissipate heat generated by the device. It's also recommended to use a heat sink or a thermal interface material to further improve thermal management.
  • The recommended input capacitance for the MAX9107ESA+T is 10nF to 100nF. This capacitance helps to filter out high-frequency noise and improve the overall performance of the device.
  • The MAX9107ESA+T is rated for operation up to 125°C, but it's recommended to derate the device's performance at higher temperatures. It's also important to ensure that the device is properly cooled and that the PCB is designed to handle high temperatures.
  • To troubleshoot issues with the MAX9107ESA+T, start by checking the power supply and ensuring that it's within the recommended range. Next, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and look for any signs of noise or distortion. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9107ESA+T Overview

Use the download button to access the MAX9107ESA+T schematic symbol, PCB footprint, and 3D model.
