MAX9111EKA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9111EKA+T - LVDS RECEIVER, 500MBPS, 3.6V, SOT23-8

Download MAX9111EKA+T Model

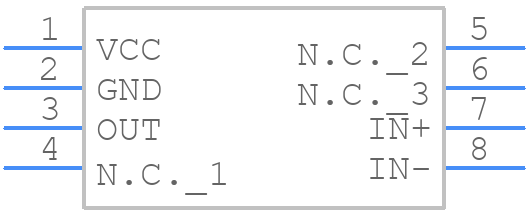

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX9111EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - MAX9111EKA+T
click to zoom
3D Models
MAX9111EKA+T - Analog Devices  - 3D model - SOT23 (8-Pin) - MAX9111EKA+T
click to zoom

MAX9111EKA+T Details

  • Manufacturer Part Number:

    MAX9111EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2.5 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX9111EKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9111EKA+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The MAX9111EKA+T requires a single 2.7V to 5.5V power supply. A 0.1uF ceramic capacitor should be placed between the VCC pin and GND, and a 1uF to 10uF capacitor can be added in parallel for additional filtering. The power supply should be clean and well-regulated.
  • The MAX9111EKA+T has an absolute maximum input voltage rating of 6V. However, the recommended maximum input voltage is 5.5V to ensure reliable operation and prevent damage to the device.
  • The MAX9111EKA+T has a fixed gain of 1, but an external resistor network can be used to set the gain to a specific value. The gain-setting resistors should be placed between the output pin and the inverting input pin, and their values should be calculated according to the desired gain and the input impedance of the device.
  • The typical settling time of the MAX9111EKA+T is around 1.5us to 2us, depending on the input signal frequency and amplitude. This is the time it takes for the output to settle within 1% of its final value after a step input.
