MAX9172ESA+ - Analog Devices

Description: LVDS Interface IC Single/Dual LVDS Line Receivers with "In-Path" Fail-Safe

Download MAX9172ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

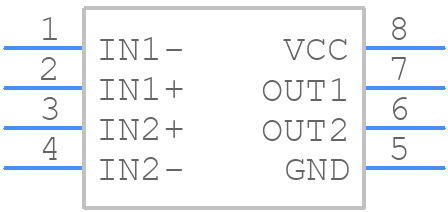

Symbol
MAX9172ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9172ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
MAX9172ESA+ - Analog Devices - 3D model - Small Outline Packages - S8+2
click to zoom

MAX9172ESA+ Details

  • Manufacturer Part Number:

    MAX9172ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-10-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2.5 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX9172ESA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9172ESA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and load.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, ensure that the EN pin is pulled high to enable the device, and that the input voltage is within the recommended range.
  • The MAX9172ESA+ can drive a maximum capacitive load of 10nF. Exceeding this limit may cause instability or oscillations in the output voltage. If a larger capacitive load is required, consider adding a series resistor to limit the capacitive current.
  • To troubleshoot issues with the output voltage regulation, start by checking the input voltage and ensuring it's within the recommended range. Next, verify that the EN pin is properly pulled high and that the output voltage is not overloaded. If the issue persists, check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB.
  • The MAX9172ESA+ is rated for operation up to 125°C, but its performance may degrade at higher temperatures. To ensure reliable operation, it's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
