MAX9202ESD+ - Analog Devices

Description: MAX9202ESD+ Maxim, Comparator, Push-Pull O/P, 7ns 14-Pin SOIC

Download MAX9202ESD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

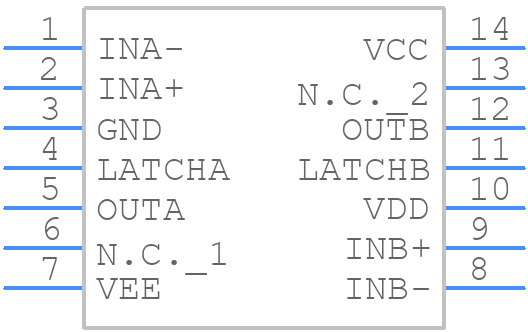

MAX9202ESD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9202ESD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0041_E (14 Pin)
click to zoom
3D Models
MAX9202ESD+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0041_E (14 Pin)
click to zoom

MAX9202ESD+ Details

  • Manufacturer Part Number:

    MAX9202ESD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    7 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX9202ESD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9202ESD+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a shielded cable for the HDMI input and output to reduce EMI.
  • The MAX9202ESD+ requires a single 3.3V power supply. It's recommended to power the device using a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the HDMI input is stable to prevent any potential damage.
  • The MAX9202ESD+ supports cable lengths up to 30 meters, but the actual length may vary depending on the cable quality and the signal frequency. Longer cables can cause signal attenuation and degradation, so it's recommended to use high-quality cables and repeaters if necessary.
  • The MAX9202ESD+ is designed to handle hot-plugging, but it's still recommended to take precautions to prevent damage. It's recommended to use a TVS diode or a surge protector to protect the device from voltage surges and to ensure that the HDMI input is properly terminated.
  • The MAX9202ESD+ supports data rates up to 10.2Gbps, which is sufficient for 4K resolution at 60Hz. Higher data rates can cause signal degradation and errors, so it's recommended to use a repeater or a signal conditioner if necessary.
