MAX9205EAI+ - Analog Devices

Description: Maxim MAX9205EAI+, LVDS Serialiser LVCMOS/ LVTTL LVDS 400Mbit/s, 3 → 3.6 V, 28-Pin, SSOP

Download MAX9205EAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

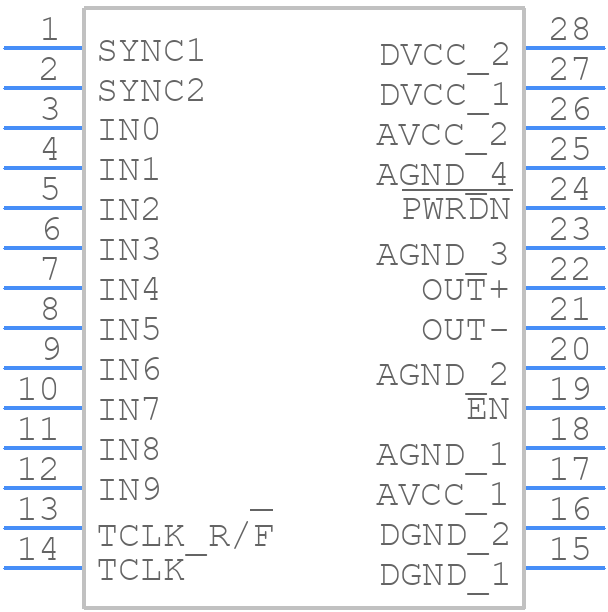

MAX9205EAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9205EAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 SSOP-0
click to zoom
3D Models
MAX9205EAI+ - Analog Devices - 3D model - Small Outline Packages - 28 SSOP-0
click to zoom

MAX9205EAI+ Details

  • Manufacturer Part Number:

    MAX9205EAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Differential Output:

    YES

  • Driver Number of Bits:

    10

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    SERIALIZER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX9205EAI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9205EAI+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • The MAX9205EAI+ requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors. Also, make sure the power supply can provide enough current to support the device's operating current.
  • The MAX9205EAI+ can support data rates up to 1.5Gbps. However, the actual data rate may be limited by the quality of the signal, the PCB layout, and the receiver's capabilities.
  • Yes, the MAX9205EAI+ is designed to support differential signaling applications. It has a differential input stage that can accept differential signals, and it provides a differential output stage that can drive differential loads.
  • To troubleshoot issues with the MAX9205EAI+, start by checking the power supply and ensuring that it is clean and well-regulated. Then, check the input and output signals using an oscilloscope to ensure that they are within the specified limits. Also, check the PCB layout and ensure that it is properly designed and laid out. If the issue persists, refer to the device's datasheet and application notes for more troubleshooting tips.
