MAX9278AGTM/V+ - Analog Devices

Description: 3.12Gbps GMSL Deserializers for Coax or STP Input and LVDS Output

Download MAX9278AGTM/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

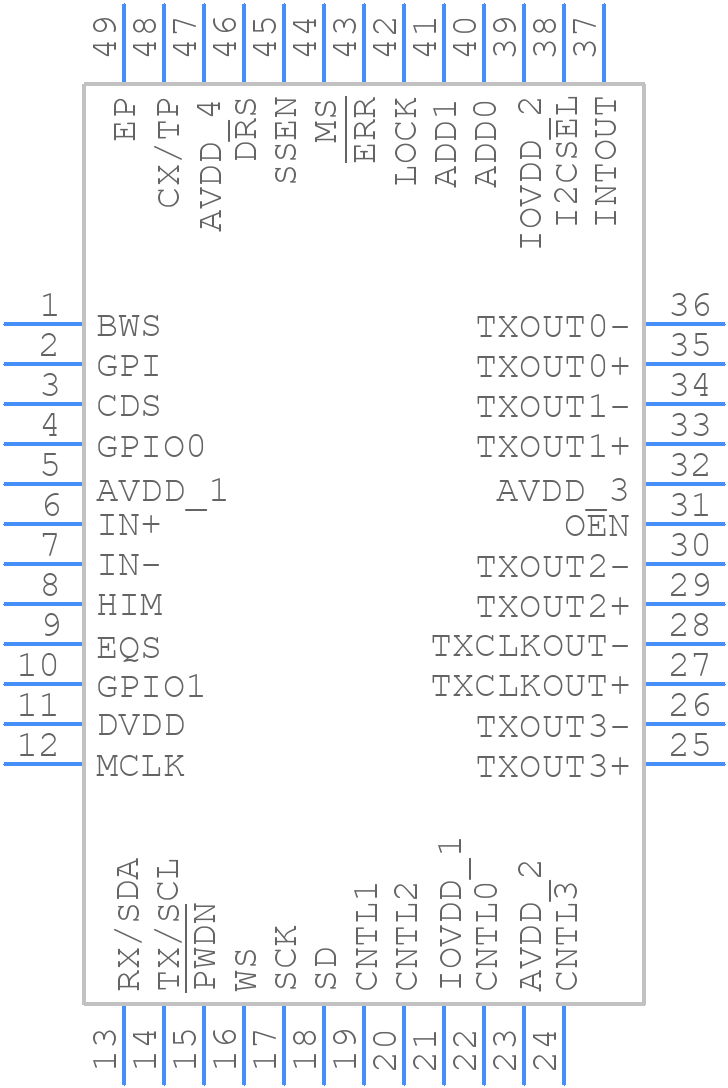

Symbol
MAX9278AGTM/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9278AGTM/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX9278AGTM/V+-
click to zoom
3D Models
MAX9278AGTM/V+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX9278AGTM/V+-
click to zoom

MAX9278AGTM/V+ Details

  • Manufacturer Part Number:

    MAX9278AGTM/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-09-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    3500 ns

  • Receiver Number of Bits:

    1

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9278AGTM/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9278AGTM/V+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. The device's exposed pad should be connected to a solid ground plane to ensure good thermal performance. Additionally, the input and output tracks should be kept short and wide to minimize signal loss and reflections.
  • To optimize the performance of the MAX9278AGTM/V+, ensure that the input signals are within the recommended common-mode voltage range, and that the output load is within the specified range. Also, use a low-ESR capacitor for the VCC bypass, and keep the device's operating temperature within the recommended range. Additionally, use a good quality clock source and ensure that the clock frequency is within the specified range.
  • The MAX9278AGTM/V+ can support clock frequencies up to 100 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock source. It is recommended to consult the datasheet and application notes for more information on clock frequency limitations.
  • Yes, the MAX9278AGTM/V+ can be used in non-automotive applications, but it is important to ensure that the device meets the specific requirements of the application. The device is designed to meet the stringent requirements of the automotive industry, so it may offer more features and performance than required for non-automotive applications. However, it can still be a good choice for applications that require high-speed data conversion and low power consumption.
  • To troubleshoot issues with the MAX9278AGTM/V+, start by checking the power supply and clock signals to ensure they are within the recommended specifications. Then, check the input and output signals to ensure they are within the expected ranges. Use an oscilloscope to check for signal integrity and noise. If the issue persists, consult the datasheet and application notes for more information on troubleshooting and debugging.
