MAX9600EUP+ - Analog Devices

Description: MAX9600EUP+ Maxim, Dual Comparator, Differential, ECL O/P, 8.3 → 10.5 V 20-Pin TSSOP

Download MAX9600EUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

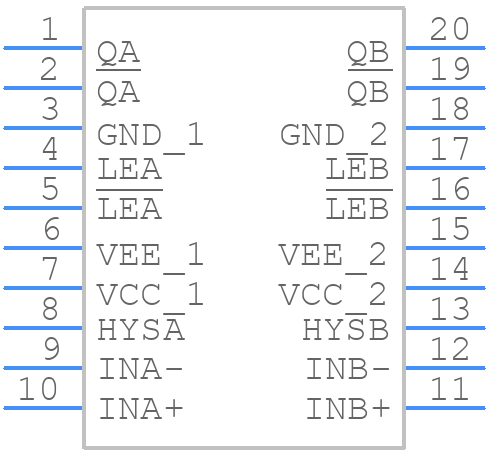

MAX9600EUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9600EUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 TSSOP
click to zoom
3D Models
MAX9600EUP+ - Analog Devices - 3D model - Small Outline Packages - 20 TSSOP
click to zoom

MAX9600EUP+ Details

  • Manufacturer Part Number:

    MAX9600EUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    20 µA

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    0.5 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX9600EUP+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9600EUP+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To optimize the MAX9600EUP+ for low-power operation, it's recommended to use a low-power mode, reduce the input signal amplitude, and minimize the output load capacitance. Additionally, the device can be powered down when not in use to reduce power consumption. It's also important to ensure that the device is operated within its recommended operating conditions to minimize power consumption.
  • The maximum operating temperature range for the MAX9600EUP+ is -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Common issues with the MAX9600EUP+ include oscillations, noise, and output signal distortion. To troubleshoot these issues, it's recommended to check the input signal quality, ensure proper PCB layout and grounding, and verify that the device is operated within its recommended operating conditions. Additionally, it's recommended to use a oscilloscope to visualize the input and output signals and identify any anomalies.
  • The recommended input signal amplitude for the MAX9600EUP+ is typically between 100mV and 1V. However, the device can handle input signal amplitudes up to 2V. It's recommended to consult the datasheet and application notes for specific input signal amplitude requirements.
