MAX9611AUB+ - Analog Devices

Description: High-Side, Current-Sense Amplifiers with 12-Bit ADC and Op Amp/Comparator

Download MAX9611AUB+ Model

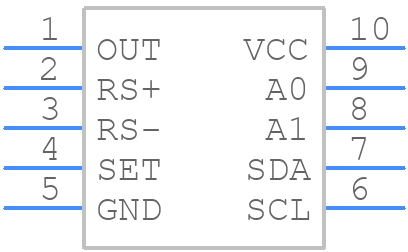

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX9611AUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2_11-1
click to zoom
3D Models
MAX9611AUB+ - Analog Devices  - 3D model - Small Outline Packages - U10+2_11-1
click to zoom

MAX9611AUB+ Details

  • Manufacturer Part Number:

    MAX9611AUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2010-10-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    5 µA

  • Bias Current-Max (IIB) @25C:

    2 µA

  • Common-mode Reject Ratio-Min:

    84 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2500

  • Wideband:

    NO

  • Width:

    3 mm

MAX9611AUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9611AUB+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input filter capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • The MAX9611AUB+ requires a bias voltage between 2.7V and 5.5V. Ensure that the bias voltage is stable and within the recommended range. A decoupling capacitor of 1uF to 10uF should be placed close to the device's VCC pin to filter out noise. Additionally, the device's input pins should be biased to a voltage within the recommended range to ensure proper operation.
  • The MAX9611AUB+ can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V to ensure reliable operation. Exceeding the maximum input voltage can damage the device.
  • The MAX9611AUB+ outputs a voltage that is proportional to the input current. The output voltage range is 0V to VCC, where VCC is the bias voltage. The output voltage can be converted to a current reading using the device's sensitivity, which is typically around 10mV/mA.
  • The MAX9611AUB+ has a typical response time of 1us to 2us, making it suitable for high-speed current sensing applications. However, the actual response time may vary depending on the input filter capacitors and the PCB layout.
