MAX9632ASA+ - Analog Devices

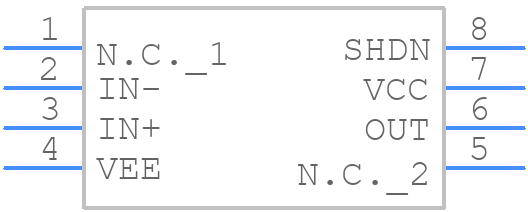

MAX9632ASA+ Details

• Manufacturer Part Number:

  MAX9632ASA+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  8-SOIC_N-150_MIL

• Package Description:

  SOP-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-SOIC_N-150_MIL

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  2010-11-03

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.18 µA

• Bias Current-Max (IIB) @25C:

  0.18 µA

• Common-mode Reject Ratio-Min:

  110 dB

• Common-mode Reject Ratio-Nom:

  135 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  165 µV

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.9 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -20 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUT LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.75 mm

• Slew Rate-Nom:

  30 V/us

• Supply Current-Max:

  6.5 mA

• Supply Voltage Limit-Max:

  20 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Unity Gain BW-Nom:

  55000

• Voltage Gain-Min:

  1000000

• Wideband:

  NO

• Width:

  3.9 mm
