MAX9637AXA+T - Analog Devices

Description: 3V/5V Low-Power, Low-Noise, CMOS, Rail-to-Rail I/O Op Amps

Download MAX9637AXA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

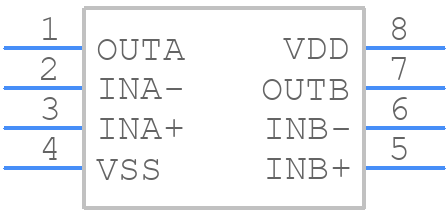

MAX9637AXA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9637AXA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SC70-
click to zoom
3D Models
MAX9637AXA+T - Analog Devices - 3D model - Small Outline Packages - SC70-
click to zoom

MAX9637AXA+T Details

  • Manufacturer Part Number:

    MAX9637AXA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SC70-N/A

  • Package Description:

    ROHS COMPLIANT, MO-203, SC-70, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SC70-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2010-07-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0008 µA

  • Bias Current-Max (IIB) @25C:

    8e-7 µA

  • Common-mode Reject Ratio-Min:

    68 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.09,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.9 V/us

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1500

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    1.25 mm

MAX9637AXA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9637AXA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX9637AXA+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The input capacitor should have a value between 1uF to 10uF, while the output capacitor should have a value between 10uF to 100uF. It's also important to consider the ESR and ESL of the capacitors to ensure they can handle the high-frequency switching of the device.
  • The MAX9637AXA+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • To troubleshoot issues with the MAX9637AXA+T, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check the output voltage ripple and noise. Consult the datasheet and application notes for troubleshooting guidelines and potential solutions.
  • Yes, the MAX9637AXA+T is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and has a high MTBF (mean time between failures) rating. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
