MAX96701GTG/V+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX96701GTG/V+ - SerDes, Serialiser, 1.74 Gbps, CMOS, LVCMOS, CML, TQFN-EP, 24 Pins

Download MAX96701GTG/V+ Model

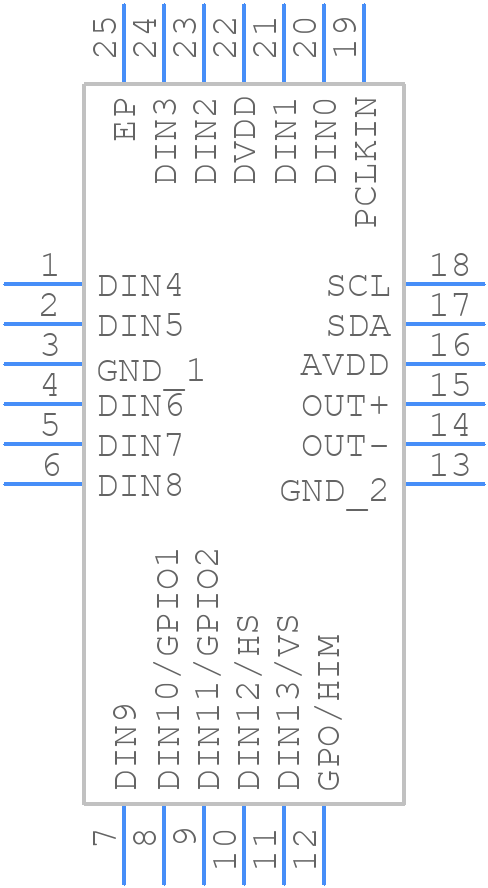

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX96701GTG/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX96701GTG/V+ - Analog Devices  - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX96701GTG/V+ Details

  • Manufacturer Part Number:

    MAX96701GTG/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-07-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    SERIALIZER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.24 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    88 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    1.9 V

  • Supply Voltage1-Min:

    1.7 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX96701GTG/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX96701GTG/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To optimize the performance of the MAX96701GTG/V+, it's essential to understand the specific requirements of your application. This includes selecting the correct input and output voltage ranges, choosing the right capacitors, and optimizing the layout for minimal noise and EMI. Additionally, you may need to adjust the device's configuration registers to optimize its performance for your specific use case.
  • The MAX96701GTG/V+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to keep the device within its recommended operating temperature range. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the power dissipation in the device. You should also follow the thermal design guidelines provided in the datasheet.
  • To troubleshoot issues with the MAX96701GTG/V+, start by verifying that the device is properly powered and configured. Check the input and output voltage levels, and ensure that the device is not overheating. Use an oscilloscope to verify the signal integrity and check for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' technical support if necessary.
  • The MAX96701GTG/V+ is designed to meet the EMI and EMC requirements of most applications. However, it's still essential to follow good design practices to minimize EMI and EMC issues. This includes using a solid ground plane, minimizing the length of the traces, and using shielding and filtering as necessary. You should also follow the EMI and EMC guidelines provided in the datasheet and application notes.
