MAX96705GTJ/V+ - Analog Devices

Description: 16-Bit GMSL Serializer with High-Immunity/Bandwidth Mode and Coax/STP Cable Drive

Download MAX96705GTJ/V+ Model

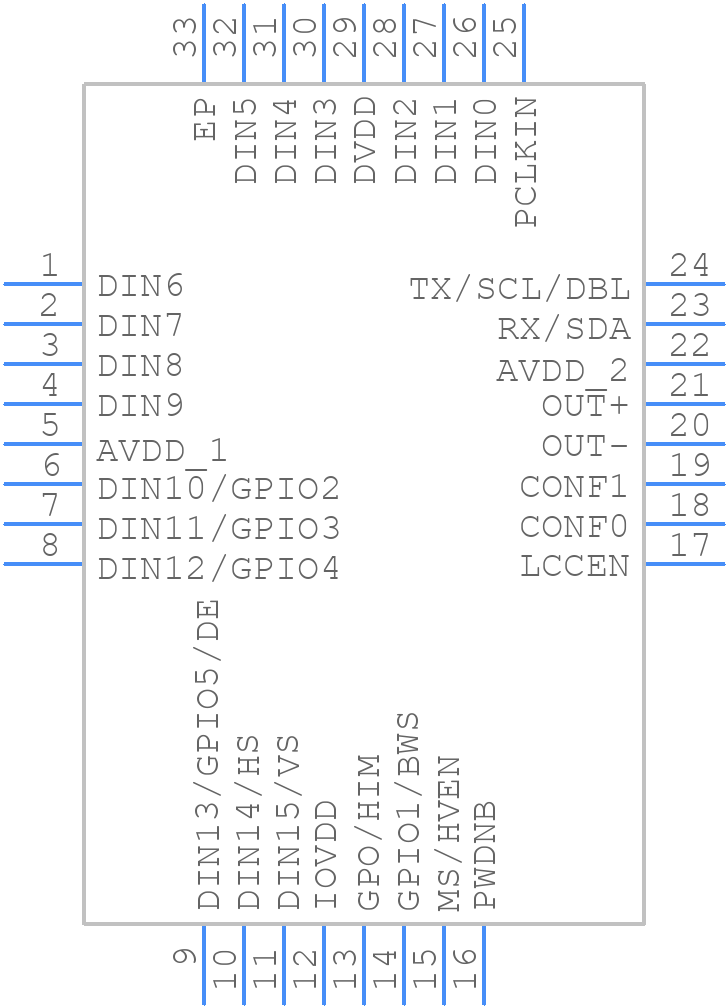

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX96705GTJ/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - -MAX96705GTJ/V+
click to zoom
3D Models
MAX96705GTJ/V+ - Analog Devices  - 3D model - Quad Flat No-Lead - -MAX96705GTJ/V+
click to zoom

MAX96705GTJ/V+ Details

  • Manufacturer Part Number:

    MAX96705GTJ/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-05-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GMSL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.24 V

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.002 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    90 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX96705GTJ/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX96705GTJ/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and the load.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the power supply voltage to the device before applying the input signal. Additionally, the device should be configured in a specific order, such as setting the gain and offset before enabling the output.
  • The MAX96705GTJ/V+ has a maximum junction temperature of 150°C. To prevent overheating, it's recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, the device should be operated within its recommended operating conditions, and the power supply voltage should be kept within the specified range.
  • To troubleshoot issues with the MAX96705GTJ/V+, it's recommended to follow a systematic approach, such as checking the power supply voltage, the input signal, and the output voltage. Additionally, it's helpful to use oscilloscopes and other measurement tools to visualize the signals and identify any anomalies. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines and to contact Analog Devices' technical support if necessary.
  • The MAX96705GTJ/V+ is a high-reliability device that can be used in safety-critical applications, such as in the automotive or industrial sectors. However, it's essential to follow the relevant safety standards and guidelines, such as IEC 61508 or ISO 26262, and to perform thorough testing and validation to ensure the device meets the required safety and reliability requirements.
