MAX96706GTJ+ - Analog Devices

Description: 14-Bit GMSL Deserializer with Coax or STP Cable Input

Download MAX96706GTJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

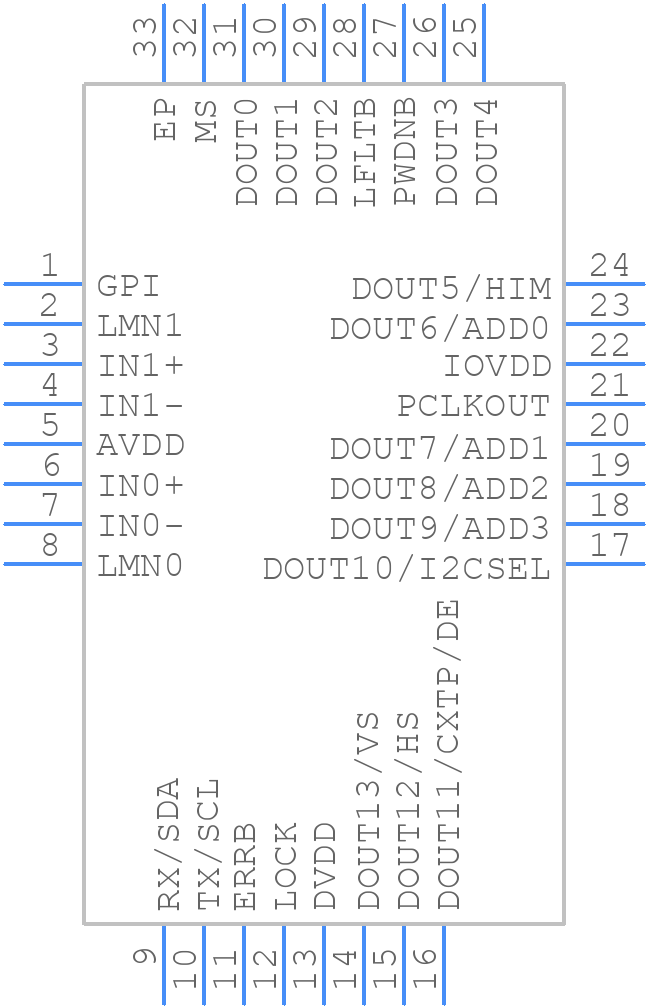

MAX96706GTJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX96706GTJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX96706GTJ+-
click to zoom
3D Models
MAX96706GTJ+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX96706GTJ+-
click to zoom

MAX96706GTJ+ Details

  • Manufacturer Part Number:

    MAX96706GTJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-09-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    ISO 10605

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.002 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    1

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX96706GTJ+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX96706GTJ+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference. Additionally, it's recommended to use a common-mode filter and to decouple the power supplies with capacitors.
  • To optimize the performance of the MAX96706GTJ+ in high-temperature environments, it's recommended to use a heat sink, ensure good airflow, and to derate the device's power consumption. Additionally, the device's internal temperature sensor can be used to monitor the temperature and adjust the system's performance accordingly.
  • The maximum cable length supported by the MAX96706GTJ+ depends on the specific application and the type of cable used. However, as a general rule, the device can support cable lengths of up to 10 meters at data rates of up to 1 Gbps. For longer cable lengths, it's recommended to use repeaters or active cables.
  • To troubleshoot issues with the MAX96706GTJ+, it's recommended to use a logic analyzer or an oscilloscope to monitor the device's signals and identify the source of the problem. Additionally, the device's built-in diagnostic features, such as the internal temperature sensor and the fault detection circuitry, can be used to help identify the issue.
  • Yes, the MAX96706GTJ+ is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to follow the device's specific automotive qualification and to ensure that the system meets the relevant automotive standards and regulations.
