MAX96706GTJ/V+ - Analog Devices

Description: ● Ideal for Safety Camera Applications • Works with Low-Cost 50Ω Coax (100Ω STP) Cable • Error Detection of Video/Control Data • High-Immunity Mode for Robust Control-Channel EMC Tolerance • Retransmission of Control Data Upon Error • Best-in-Class Supply Current: 190mA (max) • Adaptive Equalization for 15m Cable at Full Speed • 32-Pin (5mm x 5mm) TQFN/SWTQFN Package • Horizontal- and Vertical-Sync Encoding and Tracking ● High-Speed Deserialization for Megapixel Cameras • Up to 1.74Gbps Serial-B

Download MAX96706GTJ/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

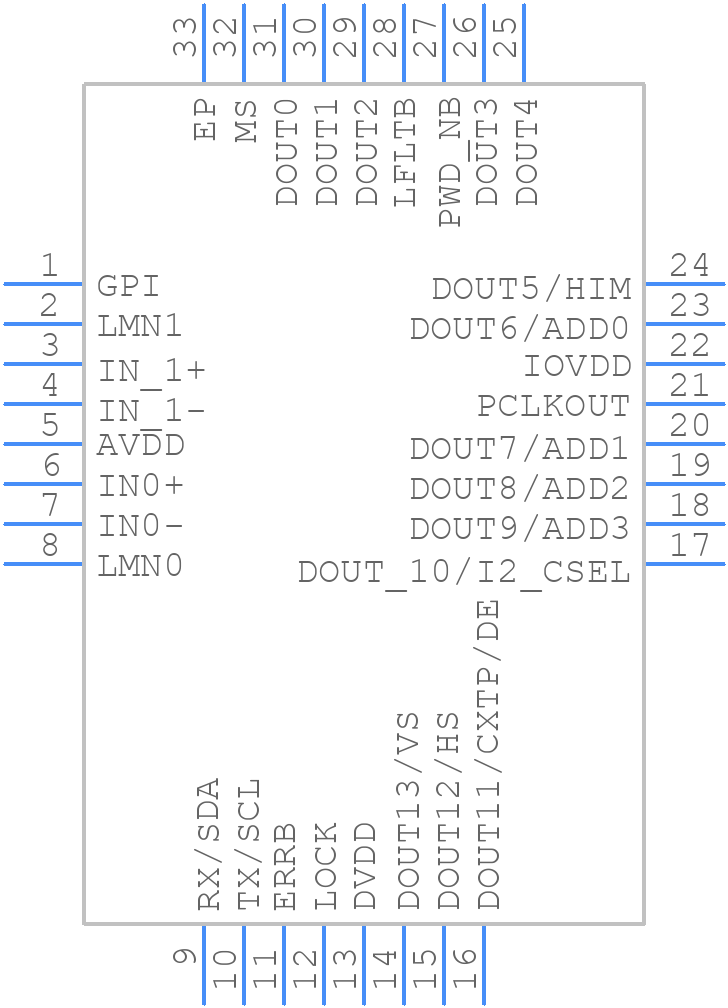

MAX96706GTJ/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX96706GTJ/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 TQFN-EP
click to zoom
3D Models
MAX96706GTJ/V+ - Analog Devices - 3D model - Quad Flat No-Lead - 32 TQFN-EP
click to zoom

MAX96706GTJ/V+ Details

  • Manufacturer Part Number:

    MAX96706GTJ/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-09-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    ISO 10605

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.002 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    1

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX96706GTJ/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX96706GTJ/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed close to the power supply and the capacitors should be placed as close as possible to the device.
  • To optimize the performance of the MAX96706GTJ/V+ in a high-temperature environment, ensure that the device is properly heatsinked, and the PCB is designed to minimize thermal resistance. Use a thermal interface material (TIM) between the device and the heatsink, and ensure good airflow around the device. Additionally, consider using a thermally conductive PCB material and a heat spreader to dissipate heat.
  • The recommended input voltage range for the MAX96706GTJ/V+ is 4.5V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
  • To troubleshoot issues with the MAX96706GTJ/V+, start by checking the power supply voltage and ensuring that it is within the recommended range. Verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and verify that they are within the expected range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAX96706GTJ/V+ is AEC-Q100 qualified and can be used in automotive applications. However, ensure that the device is properly qualified and validated for the specific application, and that it meets the required automotive standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX96706GTJ/V+ Overview

Use the download button to access the MAX96706GTJ/V+ schematic symbol, PCB footprint, and 3D model.
