MAX96717FGTJ/V+T - Analog Devices

Description: CSI-2 to GMSL2 Serializer 32 TQFN-EP -40°C to +105°C

Download MAX96717FGTJ/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

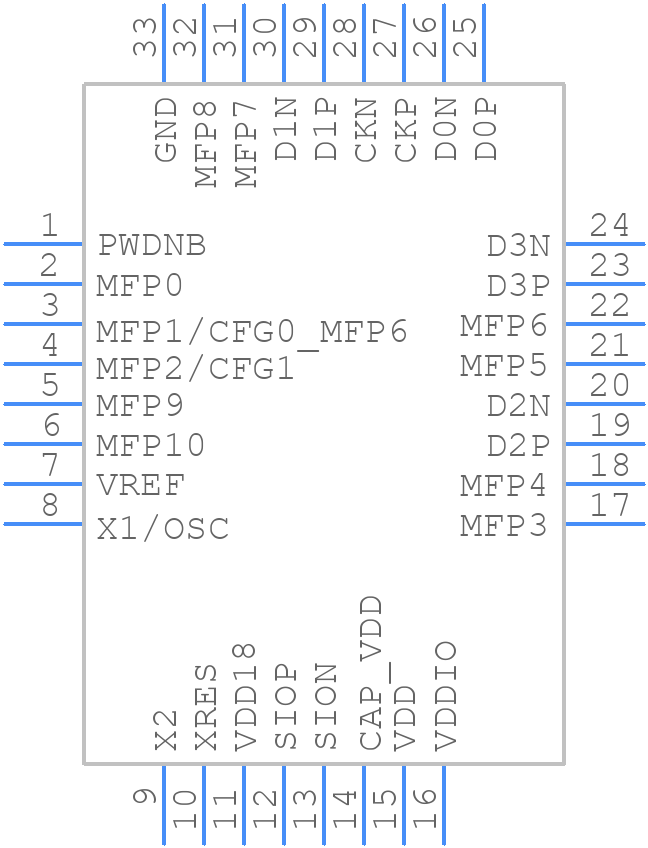

Symbol
MAX96717FGTJ/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX96717FGTJ/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+1_2022
click to zoom
3D Models
MAX96717FGTJ/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T3255+1_2022
click to zoom

MAX96717FGTJ/V+T Details

  • Manufacturer Part Number:

    MAX96717FGTJ/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    SERIALIZER

  • Interface Standard:

    GMSL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.6 V

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100; ISO 26262-ASIL B

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    238 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX96717FGTJ/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX96717FGTJ/V+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX96717FGTJ/V+T requires a single 3.3V power supply. It's recommended to power the device using a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The maximum cable length supported by the MAX96717FGTJ/V+T depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 10 meters. However, longer cable lengths can affect signal integrity due to attenuation and reflections. It's recommended to use high-quality cables and follow proper termination and shielding techniques to minimize signal degradation.
  • The MAX96717FGTJ/V+T can be configured for different camera modules using the device's registers. The recommended settings depend on the specific camera module used. It's recommended to consult the camera module datasheet and the MAX96717FGTJ/V+T datasheet for specific configuration settings.
  • The MAX96717FGTJ/V+T has a maximum junction temperature of 125°C. To ensure the device operates within the recommended temperature range, it's recommended to provide adequate heat sinking, use a thermal pad or heat sink, and ensure good airflow around the device.
