MAX96752GTN/V+T - Analog Devices

Description: GMSL2 Deserializer with Dual LVDS (OLDI) Output

Download MAX96752GTN/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX96752GTN/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints

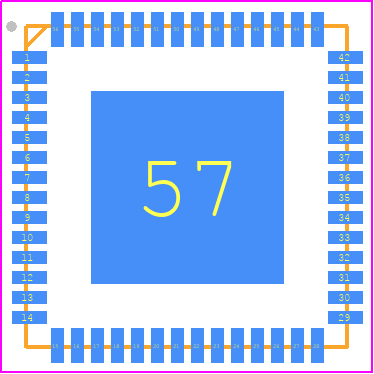

MAX96752GTN/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T5688+6C
click to zoom
3D Models
MAX96752GTN/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T5688+6C
click to zoom

MAX96752GTN/V+T Details

  • Manufacturer Part Number:

    MAX96752GTN/V+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-56

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • JESD-30 Code:

    S-PQCC-N56

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC56,.31SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    8

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

MAX96752GTN/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX96752GTN/V+T. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it's essential to place the device close to the camera module and use a shielded cable to connect the camera to the device.
  • The MAX96752GTN/V+T is a highly configurable device. To configure it for a specific camera module, you'll need to set the correct registers using the I2C interface. You can use the datasheet and the device's programming guide to determine the correct register settings for your specific camera module. You may also need to consult with the camera module manufacturer for specific configuration requirements.
  • The maximum cable length supported by the MAX96752GTN/V+T depends on several factors, including the cable type, signal frequency, and noise environment. As a general rule, the device can support cable lengths up to 10 meters at 1 Gbps and up to 5 meters at 2 Gbps. However, it's recommended to consult with Analog Devices Inc or perform your own testing to determine the maximum cable length for your specific application.
  • Troubleshooting issues with the MAX96752GTN/V+T requires a systematic approach. Start by checking the device's power supply, clock signals, and I2C interface. Use an oscilloscope to verify signal integrity and check for noise or distortion. Consult the datasheet and application notes for guidance on troubleshooting specific issues. You may also want to consult with Analog Devices Inc's technical support team for additional assistance.
  • Yes, the MAX96752GTN/V+T is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the requirements of the automotive industry. Consult with Analog Devices Inc and the automotive industry's standards and guidelines for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX96752GTN/V+T Overview

Use the download button to access the MAX96752GTN/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX96, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
