MAX9715ETE+T - Analog Devices

Description: Audio Amplifiers 2.8W, Low-EMI, Stereo, Filterless Class D Audio Amplifier

Download MAX9715ETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

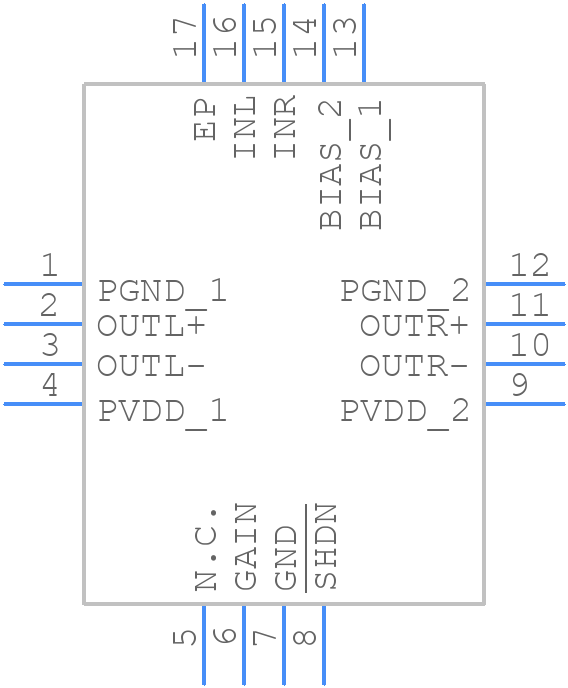

MAX9715ETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9715ETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655-2-2020-2
click to zoom
3D Models
MAX9715ETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1655-2-2020-2
click to zoom

MAX9715ETE+T Details

  • Manufacturer Part Number:

    MAX9715ETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-220WHHB, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2005-07-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    10.5 dB

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.8 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX9715ETE+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX9715ETE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio input and output connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
  • To optimize the performance of the MAX9715ETE+T in a noisy environment, it's recommended to use a low-ESR capacitor for the power supply, add a ferrite bead or a common-mode choke to the input lines, and use a shielded cable for the audio input and output. Additionally, consider using a noise-reducing circuit, such as a common-mode filter, and ensure that the device is properly decoupled from the power supply.
  • The maximum input voltage that the MAX9715ETE+T can handle is 3.6V, which is the absolute maximum rating. However, the recommended maximum input voltage is 3.3V to ensure reliable operation and to prevent damage to the device.
  • The MAX9715ETE+T can be configured for a specific audio application by adjusting the gain settings, selecting the correct input and output configurations, and setting the desired audio format (e.g., I2S, PCM, or TDM). The device also has a range of programmable settings, such as the high-pass filter cutoff frequency and the noise gate threshold, which can be adjusted to optimize performance for the specific application.
  • The power consumption of the MAX9715ETE+T depends on the specific operating mode and the clock frequency. In general, the device consumes around 10mA to 20mA of current from the power supply, with a typical power consumption of around 15mA. However, this can vary depending on the specific application and the device's configuration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9715ETE+T Overview

Use the download button to access the MAX9715ETE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX97, or try a keyword search, such as Audio/Video Amplifiers
