MAX9716EUA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9716EUA+T - AUDIO AMP, CLASS AB, 1.4W, UMAX-8

Download MAX9716EUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

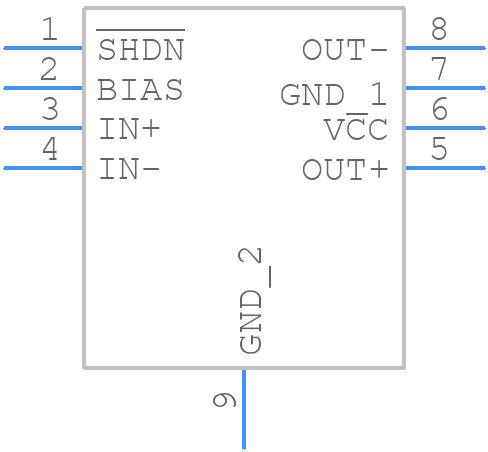

MAX9716EUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9716EUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX9716EUA+T
click to zoom
3D Models
MAX9716EUA+T - Analog Devices - 3D model - Small Outline Packages - MAX9716EUA+T
click to zoom

MAX9716EUA+T Details

  • Manufacturer Part Number:

    MAX9716EUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO_EP-N/A

  • Package Description:

    HTSSOP, TSSOP8,.19

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO_EP-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2004-03-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.4 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9716EUA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9716EUA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio input and output connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the traces connecting the device to the audio inputs and outputs.
  • The MAX9716EUA+T can be configured for different audio applications by adjusting the gain settings, input impedance, and output impedance. For example, for a microphone input, the gain can be set to 40dB and the input impedance can be set to 2kΩ. For a line input, the gain can be set to 0dB and the input impedance can be set to 10kΩ. The specific configuration will depend on the requirements of the application.
  • The maximum power consumption of the MAX9716EUA+T is 12mA. To reduce power consumption, the device can be put into a low-power mode by setting the PD pin high. Additionally, the power consumption can be reduced by reducing the supply voltage, using a lower clock frequency, and disabling unused features.
  • Common issues with the MAX9716EUA+T can be troubleshooted by checking the power supply voltage, ensuring that the device is properly configured, and verifying that the input and output signals are within the specified ranges. Additionally, noise and distortion can be reduced by using a low-noise power supply, adding filtering to the input and output signals, and ensuring that the PCB layout is optimized for audio performance.
  • Yes, the MAX9716EUA+T is compatible with other audio codecs or DSPs. It can be used as a standalone audio codec or as part of a larger audio system. The device's I2S interface allows it to be easily connected to other audio devices, and its programmable gain and input/output impedance make it flexible enough to be used in a variety of applications.
