MAX9736AETJ+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9736AETJ+T - Audio Power Amplifier, High Power, 27 W, D, 2 Channel, 8V to 28V, TQFN, 32 Pins

Download MAX9736AETJ+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

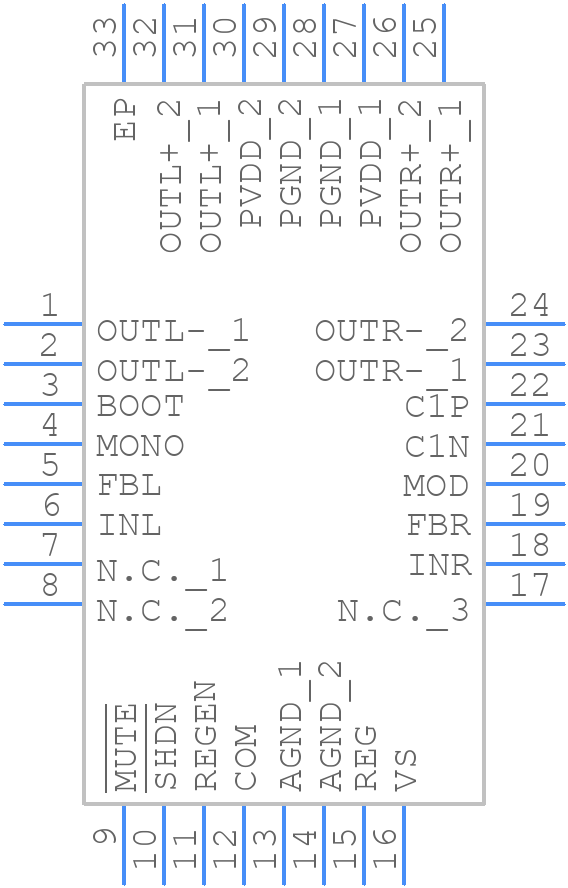

MAX9736AETJ+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9736AETJ+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-LFCSP-7X7X0.75_2023
click to zoom
3D Models
MAX9736AETJ+T - Analog Devices - 3D model - Quad Flat No-Lead - 32-LFCSP-7X7X0.75_2023
click to zoom

MAX9736AETJ+T Details

  • Manufacturer Part Number:

    MAX9736AETJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-7X7X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2008-02-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN OPERATE BOTH STEREO AND MONO MODE

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    30 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9736AETJ+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9736AETJ+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors should be chosen based on the input voltage range, ripple current, and ESR requirements. A good starting point is to use ceramic capacitors with a capacitance value of 10uF to 22uF, a voltage rating of 25V or higher, and an ESR of less than 100mΩ. It's also important to consider the capacitor's temperature rating and reliability.
  • The MAX9736AETJ+T can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
  • The MAX9736AETJ+T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by adjusting the resistor value, and the response time can be adjusted by changing the capacitor value.
  • The recommended input voltage range for the MAX9736AETJ+T is 4.5V to 14V, but it can operate from 4V to 16V. However, the device's performance and efficiency may be affected at the extremes of this range.
