MAX978ESE+ - Analog Devices

Description: Analog Comparators Single/Dual/Quad, SOT23, Single-Supply, High-Speed, Low-Power Comparators

Download MAX978ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

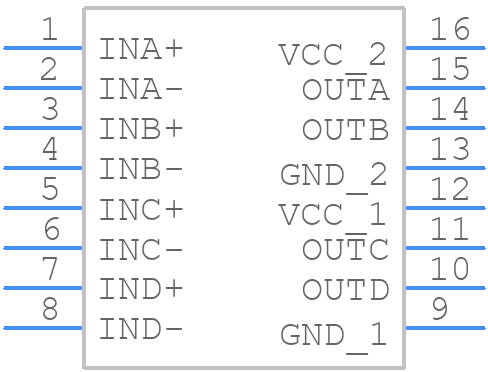

MAX978ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX978ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16M+3
click to zoom
3D Models
MAX978ESE+ - Analog Devices - 3D model - Small Outline Packages - S16M+3
click to zoom

MAX978ESE+ Details

  • Manufacturer Part Number:

    MAX978ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.3 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    28 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MAX978ESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX978ESE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and load.
  • To optimize the performance of the MAX978ESE+ in a high-temperature environment, it's recommended to use a heat sink, ensure good airflow, and reduce the power dissipation of the device. Additionally, the device's thermal shutdown feature can be enabled to prevent damage from overheating.
  • The maximum allowed voltage drop across the MAX978ESE+ is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop can lead to reduced efficiency, increased heat generation, and potentially even damage to the device.
  • Yes, the MAX978ESE+ can be used in a battery-powered device, but it's essential to consider the device's quiescent current and power consumption to ensure that the battery life is not significantly affected. Additionally, the device's shutdown feature can be used to reduce power consumption when the device is not in use.
  • To troubleshoot issues with the MAX978ESE+, it's recommended to check the device's input and output voltages, ensure that the device is properly configured and connected, and verify that the device is not overheating. Additionally, using an oscilloscope to monitor the device's output waveform can help identify issues such as oscillation or noise.
