MAX98090AETL+ - Analog Devices

Description: -40°C ~ 85°C Stereo Audio Interface 24 b I²C 40-TQFN (5x5) Package

Download MAX98090AETL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

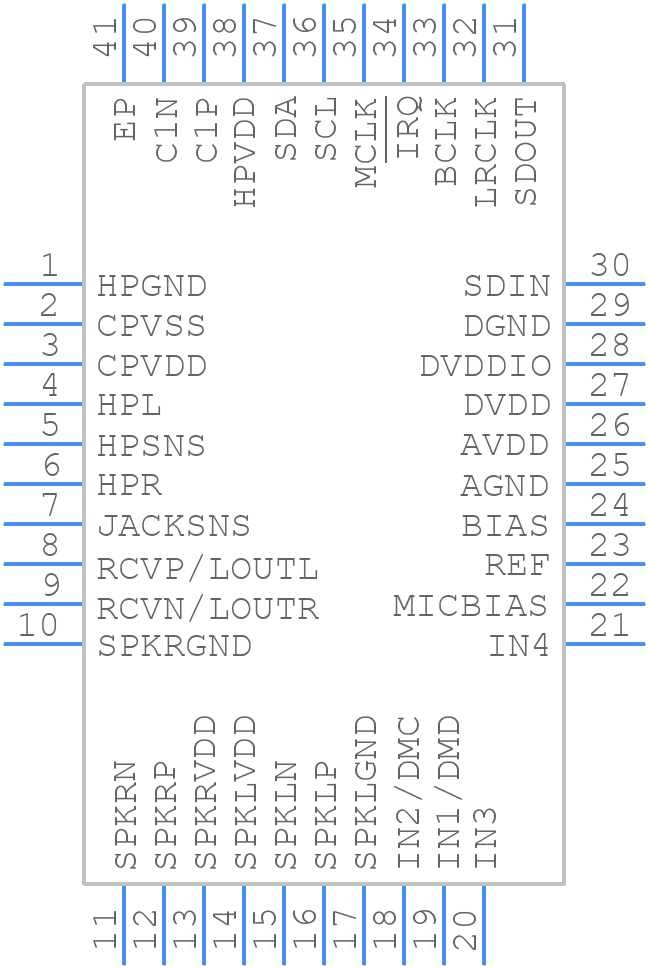

MAX98090AETL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98090AETL+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4055+1
click to zoom
3D Models
MAX98090AETL+ - Analog Devices - 3D model - Quad Flat No-Lead - T4055+1
click to zoom

MAX98090AETL+ Details

  • Manufacturer Part Number:

    MAX98090AETL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-5X5X0.75

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2013-02-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    PCM CODEC

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX98090AETL+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98090AETL+ can be found in the MAX98090 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal routing, grounding, and decoupling.
  • To optimize the performance of the MAX98090AETL+, engineers should consider factors such as input impedance, output loading, and power supply noise. Analog Devices provides application notes and design guides that offer specific recommendations for optimizing performance in various applications, such as audio amplifiers and signal processing systems.
  • The maximum power dissipation of the MAX98090AETL+ depends on the operating conditions, including the supply voltage, output current, and ambient temperature. According to the datasheet, the maximum power dissipation is typically around 1.5W, but this can be reduced by using a heat sink or optimizing the PCB layout for thermal performance.
  • The MAX98090AETL+ is specified to operate over a temperature range of -40°C to +85°C, but it can be used in high-temperature environments with some limitations. Engineers should consult the datasheet and application notes for guidance on thermal derating and reliability considerations at high temperatures.
  • Analog Devices provides a troubleshooting guide in the datasheet that covers common issues such as noise, distortion, and oscillation. Engineers can also consult application notes and design guides for specific troubleshooting techniques and best practices for debugging audio circuits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98090AETL+ Overview

Use the download button to access the MAX98090AETL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Codecs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
