MAX98090AETL+T - Analog Devices

Description: Ultra-Low Power Stereo Audio Codec

Download MAX98090AETL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

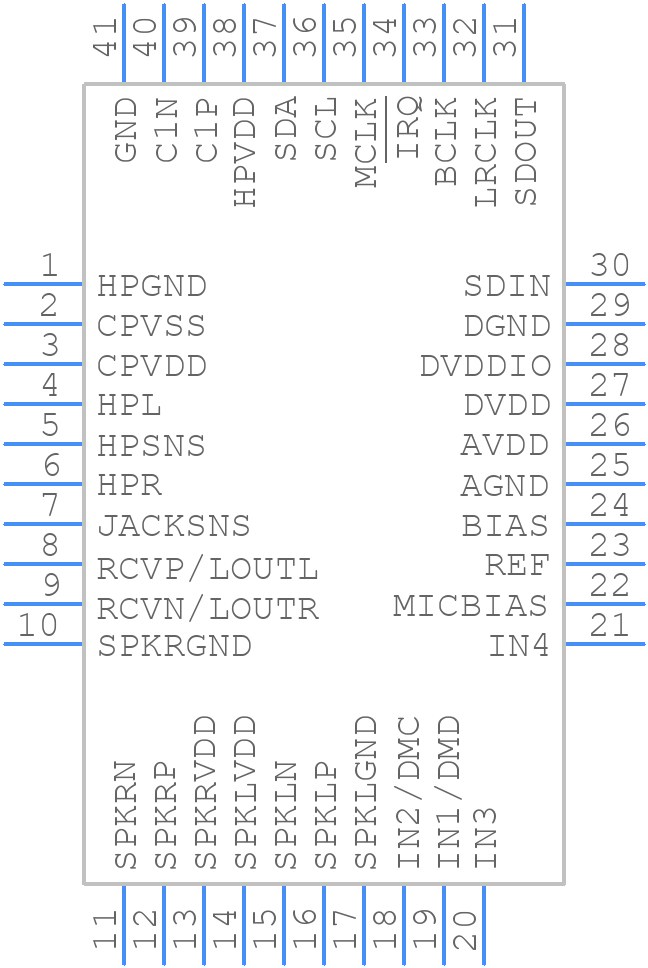

MAX98090AETL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98090AETL+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4055+1
click to zoom
3D Models
MAX98090AETL+T - Analog Devices - 3D model - Quad Flat No-Lead - T4055+1
click to zoom

MAX98090AETL+T Details

  • Manufacturer Part Number:

    MAX98090AETL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-5X5X0.75

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2013-02-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    PCM CODEC

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX98090AETL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX98090AETL+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio codec. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to follow the layout guidelines provided in the datasheet.
  • The MAX98090AETL+T can be configured using the I2C interface. You'll need to set the appropriate registers to configure the device for your specific audio application, such as setting the gain, filter coefficients, and clock rates. Refer to the datasheet and the device's programming guide for more information.
  • The maximum power consumption of the MAX98090AETL+T depends on the operating mode and the clock frequency. According to the datasheet, the maximum power consumption is around 120mW when operating at 3.3V and 48kHz sampling rate. However, this value can be reduced by using the device's power-saving features, such as the low-power mode.
  • To troubleshoot issues with the MAX98090AETL+T, start by checking the device's configuration and register settings. Verify that the clock frequency, gain, and filter coefficients are set correctly. Also, check the PCB layout and ensure that the device is properly decoupled and shielded. Use an oscilloscope to measure the audio signals and check for any signs of distortion or noise. If the issue persists, consult the datasheet and the device's application notes for more troubleshooting tips.
  • The MAX98090AETL+T is a highly flexible audio codec that can be used with a variety of audio devices and codecs. It's compatible with I2S, PCM, and TDM interfaces, making it suitable for use with a wide range of audio applications. However, it's essential to ensure that the device is properly configured and matched to the specific audio device or codec being used.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98090AETL+T Overview

Use the download button to access the MAX98090AETL+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Codecs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
