MAX98091ETM+ - Analog Devices

Description: Interface - CODECs Ultra-Low Power Stereo Audio CODEC

Download MAX98091ETM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

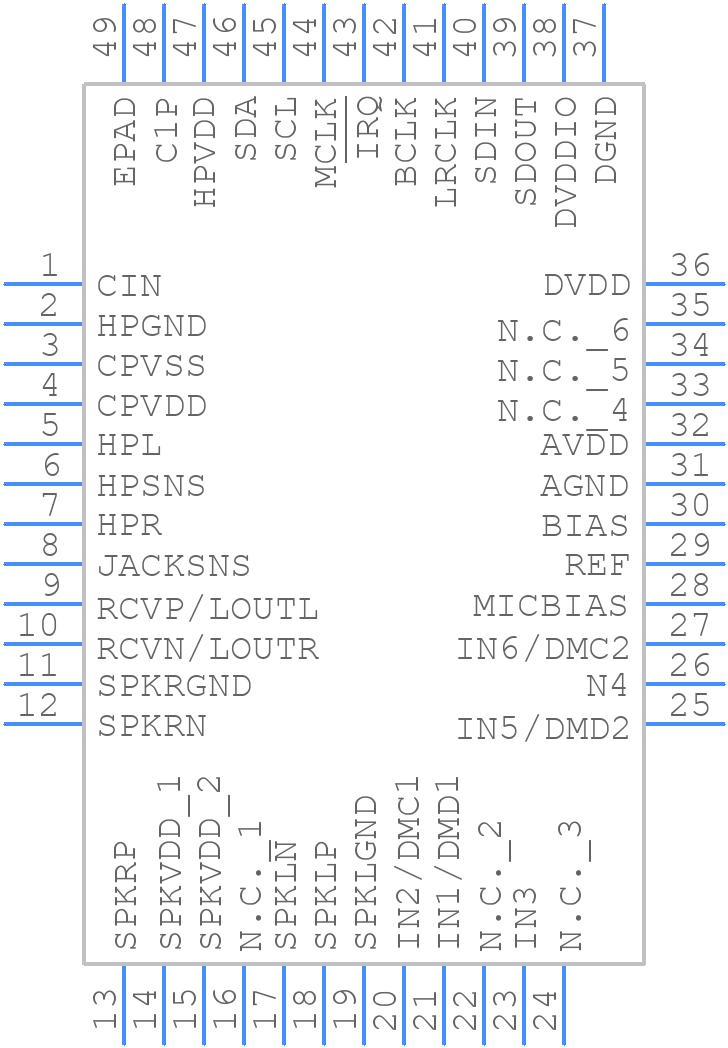

MAX98091ETM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98091ETM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48-ren1
click to zoom
3D Models
MAX98091ETM+ - Analog Devices - 3D model - Quad Flat No-Lead - QFN48-ren1
click to zoom

MAX98091ETM+ Details

  • Manufacturer Part Number:

    MAX98091ETM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-6X6X0.75

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-6X6X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2013-06-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Filter:

    YES

  • Input Code:

    TWOS COMPLEMENT

  • Input Type:

    SINGLE-ENDED/DIFF

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Output Code:

    TWOS COMPLEMENT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX98091ETM+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98091ETM+ can be found in the MAX98091 Evaluation Kit documentation, which includes a layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To optimize the performance of the MAX98091ETM+, it's recommended to follow the application notes and design guidelines provided by Analog Devices. Additionally, engineers can use simulation tools such as SPICE models and LTspice to model and simulate their design before prototyping.
  • The MAX98091ETM+ has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The device's junction-to-ambient thermal resistance (θJA) is 30°C/W, and the maximum junction temperature is 150°C. Engineers should ensure that their PCB design provides adequate thermal dissipation to prevent overheating.
  • Yes, the MAX98091ETM+ is AEC-Q100 qualified, which means it meets the Automotive Electronics Council's standards for reliability and performance in automotive applications. However, engineers should ensure that their specific design meets all relevant automotive standards and regulations.
  • Analog Devices provides a troubleshooting guide for the MAX98091ETM+ in the device's datasheet and application notes. Engineers can also use tools such as oscilloscopes and logic analyzers to debug their design and identify issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98091ETM+ Overview

Use the download button to access the MAX98091ETM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Codecs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
