MAX98091ETM+T - Analog Devices

Description: Interface - CODECs Ultra-Low Power Stereo Audio CODEC

Download MAX98091ETM+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

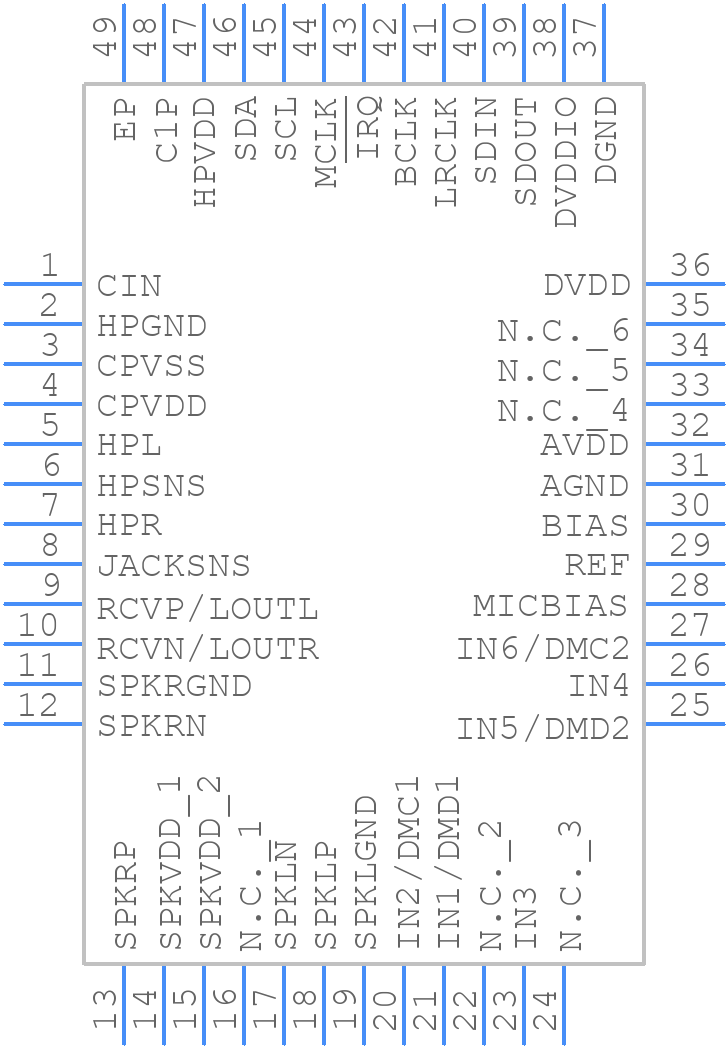

Symbol
MAX98091ETM+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98091ETM+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48-ren1
click to zoom
3D Models
MAX98091ETM+T - Analog Devices - 3D model - Quad Flat No-Lead - QFN48-ren1
click to zoom

MAX98091ETM+T Details

  • Manufacturer Part Number:

    MAX98091ETM+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-6X6X0.75

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-6X6X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2013-06-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    PCM CODEC

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX98091ETM+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX98091ETM+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio codec. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the traces connecting the device to the audio codec.
  • The MAX98091ETM+T can be configured using the I2C interface. The device has several registers that control its operation, such as the gain settings, filter coefficients, and clock configuration. The specific configuration will depend on the audio application, but Analog Devices provides a software development kit (SDK) and evaluation software to help with the configuration process.
  • The maximum power consumption of the MAX98091ETM+T depends on the operating mode and the clock frequency. According to the datasheet, the maximum power consumption is around 25mA when operating at 3.3V and 24.576MHz. However, this value can be reduced by using the device's power-saving features, such as the low-power mode.
  • Troubleshooting issues with the MAX98091ETM+T involves using a combination of tools and techniques. First, check the device's configuration and register settings to ensure they are correct. Use an oscilloscope to verify the clock signals and audio data. If the issue persists, use a logic analyzer to capture the I2C traffic and verify that the device is receiving the correct commands. Analog Devices also provides a support team and a knowledge base with FAQs and application notes to help with troubleshooting.
  • The MAX98091ETM+T is designed to work with a variety of audio codecs, including those from Analog Devices and other manufacturers. However, the specific compatibility will depend on the codec's interface and the application requirements. It's recommended to check the datasheet and application notes for the specific codec being used to ensure compatibility with the MAX98091ETM+T.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98091ETM+T Overview

Use the download button to access the MAX98091ETM+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Codecs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
