MAX9820ETB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9820ETB+T - Audio Power Amplifier, DirectDrive, 95 mW, 2 Channel, 2.7V to 5.5V, TDFN, 10 Pins

Download MAX9820ETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

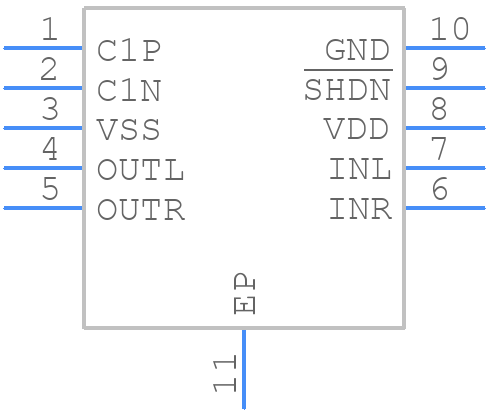

MAX9820ETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9820ETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10 TDFN-EP
click to zoom
3D Models
MAX9820ETB+T - Analog Devices - 3D model - Small Outline No-lead - 10 TDFN-EP
click to zoom

MAX9820ETB+T Details

  • Manufacturer Part Number:

    MAX9820ETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2009-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    15 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.095 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9820ETB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9820ETB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the audio input and output connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and interference.
  • The MAX9820ETB+T is a highly configurable device that can be tailored to specific audio applications. To configure the device, you'll need to set the gain, bandwidth, and output impedance to match your specific requirements. You can use the device's internal resistors and capacitors to set the gain and bandwidth, and external resistors to set the output impedance. Refer to the datasheet and application notes for more information.
  • The maximum power dissipation of the MAX9820ETB+T is 500mW. To ensure that the device doesn't overheat, you should provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure that the device is operated within its recommended operating temperature range of -40°C to +85°C. You should also avoid operating the device at maximum power dissipation for extended periods of time.
  • To troubleshoot common issues with the MAX9820ETB+T, start by checking the device's power supply and input/output connections. Ensure that the power supply is stable and within the recommended range, and that the input and output connections are secure and not damaged. Next, check the device's gain and bandwidth settings to ensure that they are correct for your application. If the issue persists, try replacing the device or checking for any external sources of noise or interference.
  • The MAX9820ETB+T is a highly compatible device that can be easily interfaced with other audio codecs or devices. To interface with other devices, you'll need to ensure that the MAX9820ETB+T is configured to match the input/output requirements of the other device. This may involve setting the gain, bandwidth, and output impedance of the MAX9820ETB+T to match the requirements of the other device. Refer to the datasheet and application notes for more information.
