MAX98300ETA+T - Analog Devices

Description: Audio Amplifiers 2W Mono Class D Amplifier

Download MAX98300ETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

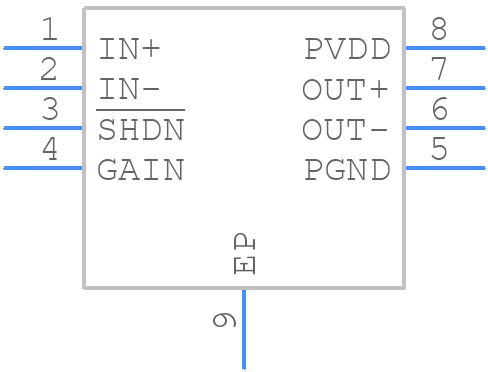

MAX98300ETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98300ETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+2
click to zoom
3D Models
MAX98300ETA+T - Analog Devices - 3D model - Small Outline No-lead - T822+2
click to zoom

MAX98300ETA+T Details

  • Manufacturer Part Number:

    MAX98300ETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2010-08-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    12 dB

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.6 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX98300ETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX98300ETA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio codec. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the power supply and another for the analog signals.
  • To optimize the performance of the MAX98300ETA+T in a noisy environment, use a ferrite bead or a common-mode choke to filter out high-frequency noise on the power supply lines. Additionally, use a shielded cable for the audio signals and keep the device away from sources of electromagnetic interference (EMI).
  • The maximum power that the MAX98300ETA+T can deliver to a speaker depends on the supply voltage and the impedance of the speaker. With a 5V supply, the device can deliver up to 2.5W of power to a 4Ω speaker. However, it's recommended to derate the power output to ensure reliable operation and to prevent overheating.
  • The MAX98300ETA+T can be configured for mono or stereo operation by setting the appropriate bits in the device's control register. For mono operation, tie the LROUT and RROUT pins together and set the MONO bit in the control register. For stereo operation, use separate channels for the left and right audio signals and clear the MONO bit.
  • The recommended clock frequency for the MAX98300ETA+T is 12.288MHz, which is a multiple of the standard audio sampling rates (44.1kHz, 48kHz, etc.). However, the device can operate with clock frequencies between 10MHz and 50MHz.
