MAX98357BEWL+T - Analog Devices

Description: Audio Amplifiers Digital Inputs Class D Amplifier

Download MAX98357BEWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

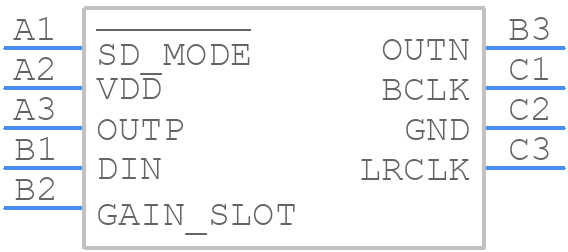

MAX98357BEWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98357BEWL+T - Analog Devices PCB footprint - BGA - BGA - MAX98357BEWL+T
click to zoom
3D Models
MAX98357BEWL+T - Analog Devices - 3D model - BGA - MAX98357BEWL+T
click to zoom

MAX98357BEWL+T Details

  • Manufacturer Part Number:

    MAX98357BEWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2013-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PBGA-B9

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX98357BEWL+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98357BEWL+T can be found in the MAX98357 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for layout design.
  • To optimize the performance of the MAX98357BEWL+T in a noisy environment, it is recommended to use proper shielding, grounding, and decoupling techniques. Additionally, using a low-ESR capacitor for the VDD pin and a high-quality audio capacitor for the output can help to reduce noise and improve overall performance.
  • The maximum power handling capability of the MAX98357BEWL+T is dependent on the output configuration and the impedance of the load. According to the datasheet, the device can deliver up to 2.5W of power into a 4Ω load. However, it is recommended to consult with Analog Devices' application engineers for specific guidance on power handling and thermal management.
  • Yes, the MAX98357BEWL+T can be used in a battery-powered device. The device has a low quiescent current of 1.5mA and a shutdown mode that reduces current consumption to 1μA, making it suitable for battery-powered applications. However, it is recommended to consider power management and battery life when designing the system.
  • To troubleshoot common issues with the MAX98357BEWL+T, it is recommended to consult the datasheet and application notes for guidance on troubleshooting and debugging. Additionally, Analog Devices provides a range of tools and resources, including evaluation boards and software, to help engineers identify and resolve issues.
