MAX98361AEWL+ - Analog Devices

Description: Tiny, Cost-Effective, Plug-and-Play Digital Class-D Amplifier

Download MAX98361AEWL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

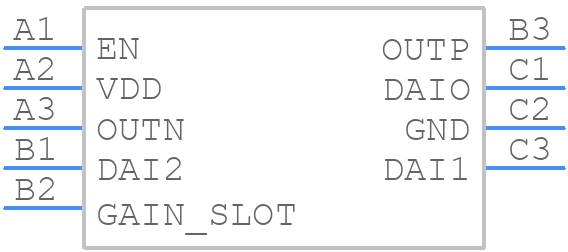

Symbol
MAX98361AEWL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98361AEWL+ - Analog Devices PCB footprint - BGA - BGA - W91F1+1
click to zoom
3D Models
MAX98361AEWL+ - Analog Devices - 3D model - BGA - W91F1+1
click to zoom

MAX98361AEWL+ Details

  • Manufacturer Part Number:

    MAX98361AEWL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2022-03-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-B9

  • Length:

    1.437 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max:

    3.35 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.347 mm

MAX98361AEWL+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX98361AEWL+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio codec. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to keep the audio signal traces short and away from digital signals.
  • To optimize the performance of the MAX98361AEWL+ in a noisy environment, use a good power supply decoupling scheme, add ferrite beads or inductors to filter out high-frequency noise, and use shielding or guard rings to reduce electromagnetic interference (EMI). Additionally, consider using a common-mode choke to reduce common-mode noise.
  • The maximum power that the MAX98361AEWL+ can deliver to a speaker depends on the supply voltage and the impedance of the speaker. With a 5V supply, the device can deliver up to 2.5W of power to a 4Ω speaker. However, it's recommended to derate the power output based on the ambient temperature and the desired reliability.
  • The MAX98361AEWL+ can be configured for a specific audio application by adjusting the gain settings, filter coefficients, and other parameters through the I2C or SPI interface. The device also has a number of default settings and modes that can be selected based on the application requirements. Refer to the datasheet and application notes for more information.
  • The MAX98361AEWL+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a good thermal design, such as a heat sink or a thermal pad, and by derating the power output based on the ambient temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98361AEWL+ Overview

Use the download button to access the MAX98361AEWL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
