MAX98400AETX+T - Analog Devices

Description: Stereo, High-Power, Class D Amplifier

Download MAX98400AETX+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

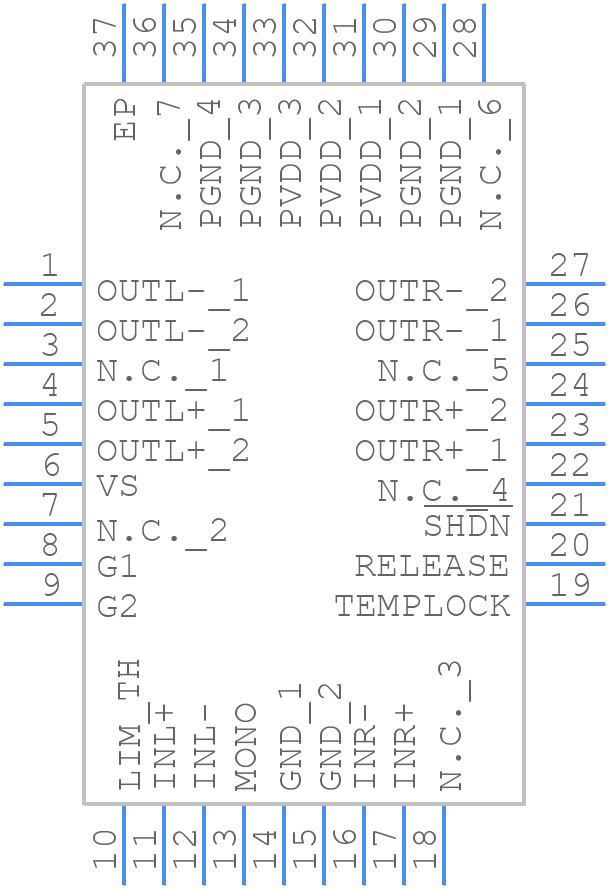

MAX98400AETX+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98400AETX+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-LFCSP-6X6X0.75_2023-1
click to zoom
3D Models
MAX98400AETX+T - Analog Devices - 3D model - Quad Flat No-Lead - 36-LFCSP-6X6X0.75_2023-1
click to zoom

MAX98400AETX+T Details

  • Manufacturer Part Number:

    MAX98400AETX+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-LFCSP-6X6X0.75

  • Package Description:

    TDFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-LFCSP-6X6X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2010-07-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    44 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX98400AETX+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX98400AETX+T is to follow the guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated layer for the analog signals, a dedicated layer for the digital signals, and two layers for the power and ground.
  • To optimize the performance of the MAX98400AETX+T in your specific application, you should consider factors such as the input signal frequency, amplitude, and impedance, as well as the desired output signal quality and noise floor. You may need to adjust the gain and bandwidth settings, as well as the input and output filtering, to achieve the best performance for your specific use case.
  • The maximum operating temperature range for the MAX98400AETX+T is -40°C to +125°C, as specified in the datasheet. However, it is recommended to operate the device within a narrower temperature range, such as -20°C to +85°C, to maintain optimal performance and to minimize the risk of thermal-related failures.
  • To troubleshoot issues with the MAX98400AETX+T, you should start by verifying that the device is properly powered and that the input signals are within the specified range. You should also check the output signals using an oscilloscope or other measurement tool to identify any anomalies or issues. If you are still unable to resolve the issue, you may need to consult the datasheet, application notes, or contact their technical support team for further assistance.
  • The key differences between the MAX98400AETX+T and other similar devices from Analog Devices Inc include the specific features, performance, and specifications of each device. For example, the MAX98400AETX+T has a specific gain range, bandwidth, and noise floor, whereas other devices may have different specifications. You should carefully review the datasheet and product descriptions to determine which device is best suited for your specific application.
