MAX98502EWE+T - Analog Devices

Description: Audio Amplifiers Boosted Class D Amplifier

Download MAX98502EWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

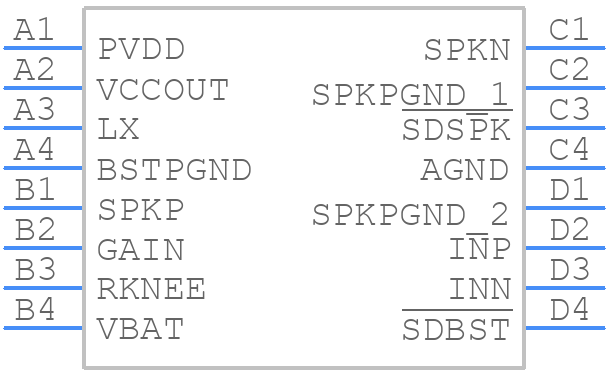

MAX98502EWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98502EWE+T - Analog Devices PCB footprint - BGA - BGA - MAX98502EWE+T
click to zoom
3D Models
MAX98502EWE+T - Analog Devices - 3D model - BGA - MAX98502EWE+T
click to zoom

MAX98502EWE+T Details

  • Manufacturer Part Number:

    MAX98502EWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2012-01-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    S-PBGA-B16

  • Length:

    2.045 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    4.1 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.045 mm

MAX98502EWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX98502EWE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the digital signals away from the analog signals.
  • To optimize the performance of the MAX98502EWE+T in a high-temperature environment, it's recommended to use a heat sink, ensure good airflow, and reduce the power consumption of the device. Additionally, the device can be operated at a lower clock frequency to reduce power consumption and heat generation.
  • The maximum power supply voltage that can be used with the MAX98502EWE+T is 3.6V. Exceeding this voltage can cause damage to the device.
  • To troubleshoot issues with the MAX98502EWE+T, it's recommended to check the power supply voltage, ensure that the input and output capacitors are properly connected, and verify that the device is properly configured. Additionally, using an oscilloscope to measure the output voltage and current can help identify the root cause of the issue.
  • Yes, the MAX98502EWE+T can be used in a battery-powered device. The device has several power-saving features, including a low-power shutdown mode, a low-dropout regulator, and a dynamic voltage scaling feature that allows the device to operate at a lower voltage and reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98502EWE+T Overview

Use the download button to access the MAX98502EWE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
