MAX9860ETG+ - Analog Devices

Description: Interface - CODECs 16-Bit Mono Audio Voice CODEC

Download MAX9860ETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

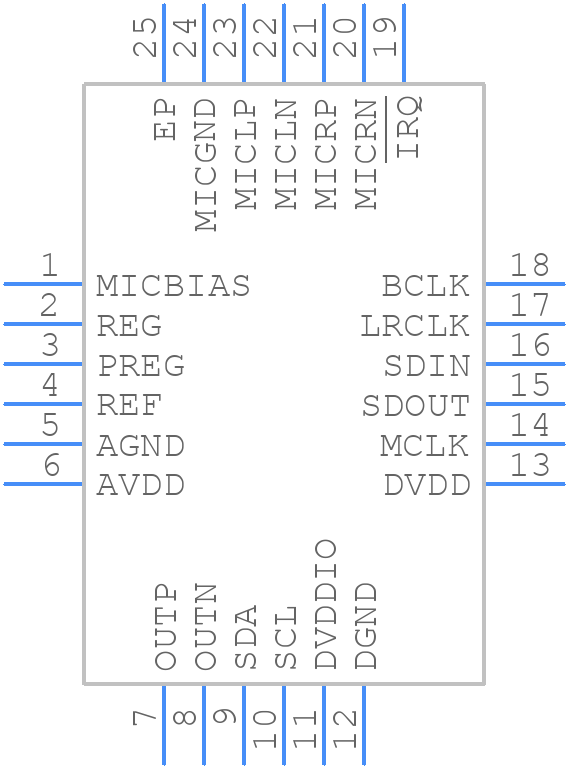

MAX9860ETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9860ETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 TQFN-EP
click to zoom
3D Models
MAX9860ETG+ - Analog Devices - 3D model - Quad Flat No-Lead - 24 TQFN-EP
click to zoom

MAX9860ETG+ Details

  • Manufacturer Part Number:

    MAX9860ETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-220, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX9860ETG+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX9860ETG+ can be found in the MAX9860 Evaluation Kit User Guide (UG-311) and the MAX9860 Layout Guide (MAX9860LG). These documents provide detailed guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The MAX9860ETG+ can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, such as the audio data format, sample rate, and bit depth. The MAX9860 datasheet provides a detailed description of the registers and their settings for different audio formats. Additionally, the MAX9860 Evaluation Kit Software provides a graphical user interface for configuring the device.
  • The power-up sequence for the MAX9860ETG+ is critical to ensure proper operation. The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal (MCLK). The device should be powered up in this order to prevent damage or malfunction.
  • Troubleshooting common issues with the MAX9860ETG+ can be done using a combination of tools and techniques. The MAX9860 datasheet provides a troubleshooting guide that covers common issues such as noise, distortion, and clock jitter. Additionally, the MAX9860 Evaluation Kit Software provides a diagnostic tool that can help identify and debug issues. Engineers can also use oscilloscopes and signal analyzers to measure the audio signals and identify problems.
  • The MAX9860ETG+ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range. Thermal management considerations include providing adequate heat sinking, using thermal vias, and minimizing thermal resistance. The MAX9860 datasheet provides a thermal management section that provides guidelines for thermal design and layout.
