MAX9917EUB+ - Analog Devices

Description: Maxim MAX9917EUB+, Dual Op Amp, 1MHz Rail-Rail, 1.8 → 5.5 V, 10-Pin μMAX

Download MAX9917EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

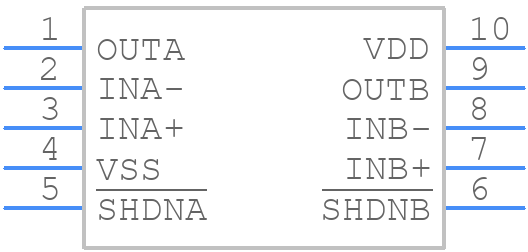

Symbol
MAX9917EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9917EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2+
click to zoom
3D Models
MAX9917EUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2+
click to zoom

MAX9917EUB+ Details

  • Manufacturer Part Number:

    MAX9917EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-187CBA, MICRO, SOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2005-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00003 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    17780

  • Wideband:

    NO

  • Width:

    3 mm

MAX9917EUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9917EUB+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To optimize the performance of the MAX9917EUB+, consider the input voltage range, output current requirements, and noise sensitivity of your application. Choose the right input capacitors, set the correct output voltage, and adjust the compensation network according to the datasheet and application notes. You can also use Analog Devices' online tools and simulation models to simulate and optimize your design.
  • The MAX9917EUB+ has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the device away from other heat sources. You can also use thermal simulation tools to estimate the device's temperature rise in your specific application.
  • Yes, the MAX9917EUB+ is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a robust process that ensures high reliability. However, you should still perform thorough testing and validation to ensure the device meets your specific application requirements.
  • To troubleshoot issues with the MAX9917EUB+, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input capacitors are correctly sized. Use an oscilloscope to check for noise, oscillations, or other anomalies. Consult the datasheet, application notes, and Analog Devices' support resources for guidance on troubleshooting common issues.
