MAX9924UAUB+ - Analog Devices

Description: Variable Reluctance Sr Interface uMAX10 Maxim MAX9924UAUB+ Hall Effect Sensor IC 10-Pin μMAX, 4.5 → 5.5 V

Download MAX9924UAUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

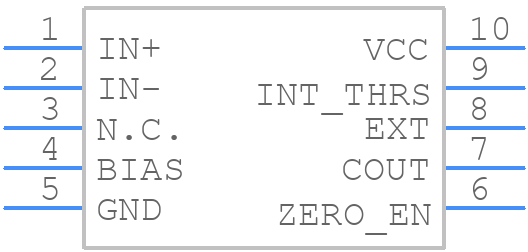

MAX9924UAUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9924UAUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX
click to zoom
3D Models
MAX9924UAUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX
click to zoom

MAX9924UAUB+ Details

  • Manufacturer Part Number:

    MAX9924UAUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MO-187BA, USOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2008-11-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9924UAUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9924UAUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the sensing resistors. A 4-layer PCB with a dedicated analog ground layer is recommended.
  • The choice of sensing resistors depends on the current range and accuracy required for your application. A higher resistance value provides better accuracy at lower currents, while a lower resistance value provides better accuracy at higher currents. The datasheet provides a table to help select the optimal sensing resistor value.
  • The MAX9924UAUB+ has a specified temperature range of -40°C to +125°C. Over this range, the device's accuracy is affected by temperature, with a typical drift of ±0.1% per °C. To minimize temperature effects, it is recommended to use a thermally stable sensing resistor and to calibrate the device at the operating temperature.
  • Yes, the MAX9924UAUB+ is designed to operate in high-vibration environments. However, it is recommended to follow proper PCB mounting and assembly techniques to ensure the device's reliability and accuracy. Additionally, the sensing resistors should be securely attached to the PCB to prevent movement or damage.
  • Calibration involves adjusting the device's offset and gain to match the specific requirements of your application. The datasheet provides a calibration procedure that involves applying a known current to the sensing resistors and adjusting the device's output to match the expected value.
