MAX9924UAUB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9924UAUB+T - Specialized Interface, Sensor Interface, Camshaft, Crankshaft & Vehicle Speed VRS Interfaces, 4.5 V

Download MAX9924UAUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

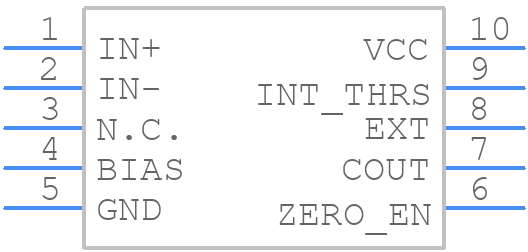

MAX9924UAUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9924UAUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX9924UAUB+T
click to zoom
3D Models
MAX9924UAUB+T - Analog Devices - 3D model - Small Outline Packages - MAX9924UAUB+T
click to zoom

MAX9924UAUB+T Details

  • Manufacturer Part Number:

    MAX9924UAUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MO-187BA, UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2008-11-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9924UAUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9924UAUB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX9924UAUB+T does not require calibration for voltage measurement. The device has an internal voltage reference and a high-accuracy ADC that provides accurate voltage measurements without the need for calibration. However, it's recommended to follow the datasheet guidelines for setting the gain and offset registers to optimize the device's performance for the specific application.
  • The MAX9924UAUB+T has an operating temperature range of -40°C to +125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to consult the datasheet for more information on the device's temperature characteristics and to ensure that the device is operated within the recommended temperature range for the specific application.
  • Yes, the MAX9924UAUB+T is designed to operate in high-vibration environments. The device has a robust design and is qualified to meet the requirements of the automotive industry, which includes vibration testing. However, it's recommended to follow proper PCB design and assembly practices to ensure that the device is securely attached to the PCB and can withstand the expected vibration levels.
  • To troubleshoot issues with the MAX9924UAUB+T, start by consulting the datasheet and application notes to ensure that the device is properly configured and used. Check the power supply and input voltage levels, and verify that the device is properly connected to the PCB. Use a logic analyzer or oscilloscope to monitor the device's digital outputs and verify that they are correct. If the issue persists, contact Analog Devices Inc. support for further assistance.
