MAX9924UAUB/V+ - Analog Devices

Description: Sensor Interface Variable-Reluctance Sensor Interface with Differential Input and Adaptive Peak Threshold

Download MAX9924UAUB/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

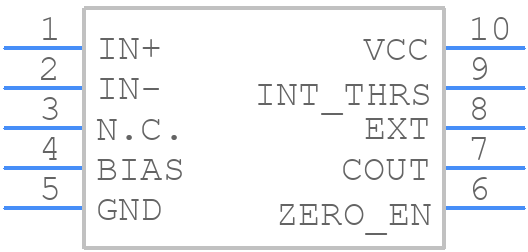

MAX9924UAUB/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9924UAUB/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX9924UAUB/V+ - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX9924UAUB/V+ Details

  • Manufacturer Part Number:

    MAX9924UAUB/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MO-187BA, USOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2008-11-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9924UAUB/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9924UAUB/V+ involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • The values of R1 and R2 depend on the desired gain and bandwidth of the amplifier. A higher gain requires smaller resistor values, while a higher bandwidth requires larger resistor values. The datasheet provides a formula to calculate the gain and bandwidth based on R1 and R2 values. Typically, R1 is in the range of 1kΩ to 10kΩ, and R2 is in the range of 10kΩ to 100kΩ.
  • The maximum input voltage that the MAX9924UAUB/V+ can handle is ±20V, but it's recommended to keep the input voltage within ±15V to ensure optimal performance and prevent damage to the device.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, the input and output impedance should be matched, and the gain and bandwidth should be set correctly. The datasheet provides a stability analysis section to help with this.
  • The typical power consumption of the MAX9924UAUB/V+ is around 1.2mA per amplifier, but it can vary depending on the supply voltage, gain, and bandwidth. The datasheet provides a power consumption calculation formula to help estimate the power consumption in a specific application.
