MAX9925AUB+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9925AUB+ - Specialized Interface, Sensor Interface, Camshaft, Crankshaft & Vehicle Speed VRS Interfaces, 4.5 V

Download MAX9925AUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

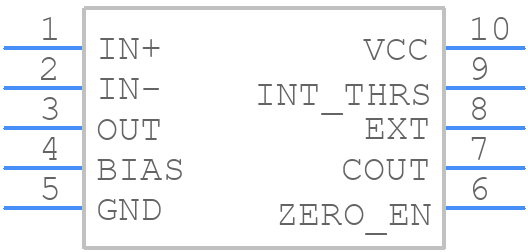

Symbol
MAX9925AUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9925AUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX
click to zoom
3D Models
MAX9925AUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX
click to zoom

MAX9925AUB+ Details

  • Manufacturer Part Number:

    MAX9925AUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MO-187BA, USOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2008-11-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9925AUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9925AUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the sensing resistors. A 4-layer PCB with a dedicated analog ground layer is recommended.
  • The choice of sensing resistors depends on the current range and accuracy required for your application. A higher resistance value provides higher sensitivity, but may also increase noise. A good starting point is to use resistors with a value between 1kΩ and 10kΩ, and then adjust based on your specific requirements.
  • The maximum voltage that can be applied to the input pins of the MAX9925AUB+ is 24V, but it's recommended to keep the input voltage below 20V to ensure accurate measurements and prevent damage to the IC.
  • Calibration involves adjusting the offset and gain of the IC to match your specific application. This can be done by applying a known input current and adjusting the offset and gain registers to achieve the desired output. The datasheet provides a detailed calibration procedure.
  • The MAX9925AUB+ has a temperature range of -40°C to +125°C, and its accuracy is affected by temperature. The IC has a typical temperature coefficient of ±0.1% per °C, which means that the output voltage will change by ±0.1% for every 1°C change in temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9925AUB+ Overview

Use the download button to access the MAX9925AUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX99, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
