MAX9927AEE+ - Analog Devices

Description: Variable Reluctance Sensor Interfaces with Differential Input and Adaptive Peak

Download MAX9927AEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

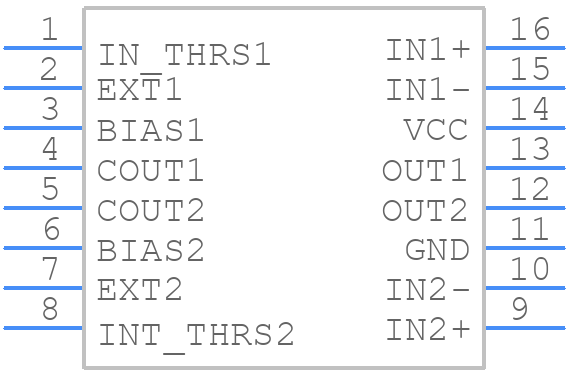

MAX9927AEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9927AEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX9927AEE+ - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX9927AEE+ Details

  • Manufacturer Part Number:

    MAX9927AEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, ROHS COMPLIANT, MO-137, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2008-11-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX9927AEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9927AEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the traces between the device and the battery.
  • Calibration of the MAX9927AEE+ involves setting the internal voltage reference and gain calibration registers. This can be done by connecting a known voltage source to the device and using the datasheet-provided calibration equations to calculate the required register values. It's also recommended to perform calibration at multiple temperatures to ensure accuracy across the operating range.
  • The maximum allowed voltage on the BAT pin of the MAX9927AEE+ is 5.5V. Exceeding this voltage can damage the device. It's recommended to use a voltage limiter or a voltage divider to ensure that the voltage on the BAT pin does not exceed the maximum rating.
  • The MAX9927AEE+ has a sleep mode that can be enabled by setting the SLEEP pin high. In sleep mode, the device consumes very low power. To minimize power consumption, it's recommended to put the device in sleep mode when not in use and to use a low-power microcontroller to control the device. Additionally, the device can be configured to wake up periodically to take measurements and then return to sleep mode.
  • The accuracy of the battery voltage measurement of the MAX9927AEE+ is ±1.5% over the operating temperature range of -40°C to +125°C. This accuracy is achieved by using an internal voltage reference and a 12-bit ADC. The device also has a built-in calibration mechanism to ensure accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9927AEE+ Overview

Use the download button to access the MAX9927AEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX99, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
