MAX9934TAUA+ - Analog Devices

Description: High-Precision, Low-Voltage, Current-Sense Amplifier with Current Output and Chip Select for Multiplexing

Download MAX9934TAUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

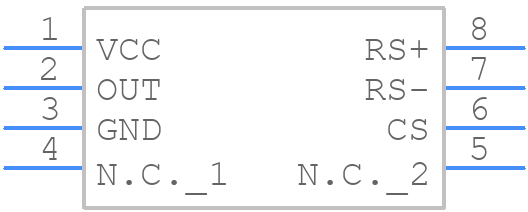

Symbol
MAX9934TAUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9934TAUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 µMAX PACKAGE TYPE
click to zoom
3D Models
MAX9934TAUA+ - Analog Devices - 3D model - Small Outline Packages - 8 µMAX PACKAGE TYPE
click to zoom

MAX9934TAUA+ Details

  • Manufacturer Part Number:

    MAX9934TAUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MICRO MAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2009-11-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9934TAUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9934TAUA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to minimize noise and interference.
  • The value of the external capacitor (CFLT) depends on the desired filter cutoff frequency and the input impedance of the device. A good starting point is to use the formula provided in the datasheet: CFLT = 1 / (2 * π * RFLT * fCUTOFF), where RFLT is the internal filter resistance and fCUTOFF is the desired cutoff frequency.
  • The MAX9934TAUA+ can handle input voltages up to 40V, but it's recommended to limit the input voltage to 30V or less to ensure reliable operation and to prevent damage to the device.
  • The output voltage of the MAX9934TAUA+ is a ratiometric output, meaning that it's proportional to the input voltage and the supply voltage. The output voltage can be interpreted as a percentage of the input voltage, with 0V to 5V corresponding to 0% to 100% of the input voltage range.
  • The MAX9934TAUA+ is rated for operation up to 125°C, but its accuracy and linearity may degrade at high temperatures. It's recommended to derate the device's performance at high temperatures and to consider using a thermally-enhanced package or a heat sink to maintain a safe operating temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9934TAUA+ Overview

Use the download button to access the MAX9934TAUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX99, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
