MAXM17504ALJ+T - Analog Devices

Description: Switching Voltage Regulators 60V, 3.5A Integrated Inductor Power Module

Download MAXM17504ALJ+T Model

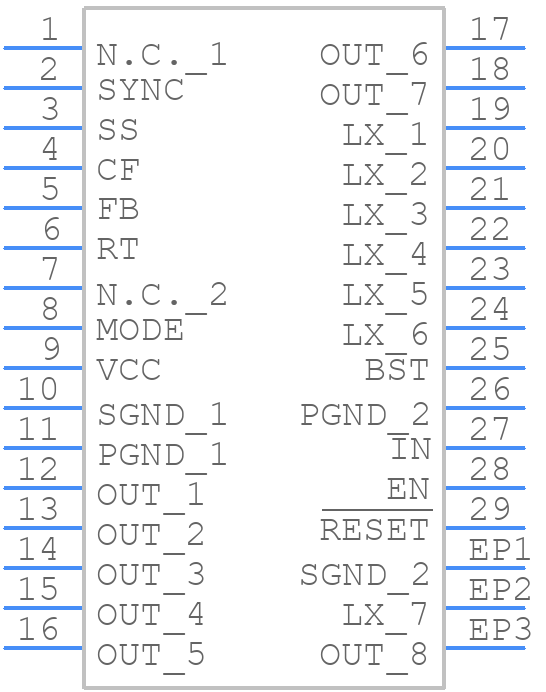

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

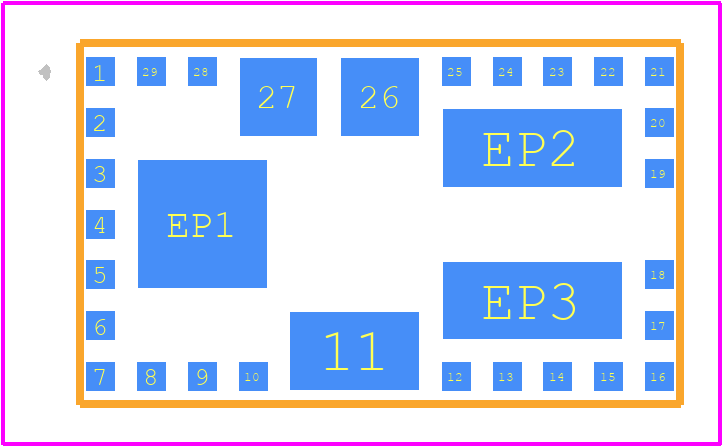

MAXM17504ALJ+T - Analog Devices PCB footprint - Other - Other - L32915 +3
click to zoom
3D Models
MAXM17504ALJ+T - Analog Devices  - 3D model - Other - L32915 +3
click to zoom

MAXM17504ALJ+T Details

  • Manufacturer Part Number:

    MAXM17504ALJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    32-LGA-9X15X2.92

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LGA-9X15X2.92

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Moisture Sensitivity Level:

    3

MAXM17504ALJ+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17504ALJ+T involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the input and output stages to minimize noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any potential oscillations.
  • The maximum input voltage that can be applied to the MAXM17504ALJ+T is 32V. Exceeding this voltage can cause damage to the device. It's recommended to add input protection circuitry, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The output voltage ripple of the MAXM17504ALJ+T can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. A lower output voltage ripple can be achieved by using a larger output capacitor or a capacitor with lower ESL.
  • The MAXM17504ALJ+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage ratings at high temperatures to ensure reliable operation. Additionally, ensure that the PCB and surrounding components are also rated for high-temperature operation.
