MAXM17537ALY# - Analog Devices

Description: 4.5V to 60V, 3A High-Efficiency, DC-DC Step-Down SiP Power Module with Integrated Inductor

Download MAXM17537ALY# Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

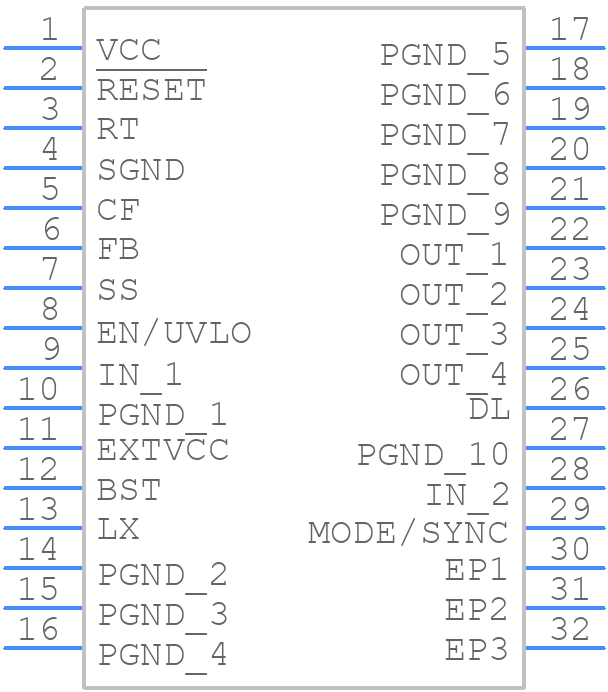

MAXM17537ALY# - Analog Devices - PCB symbol
click to zoom
PCB Footprints

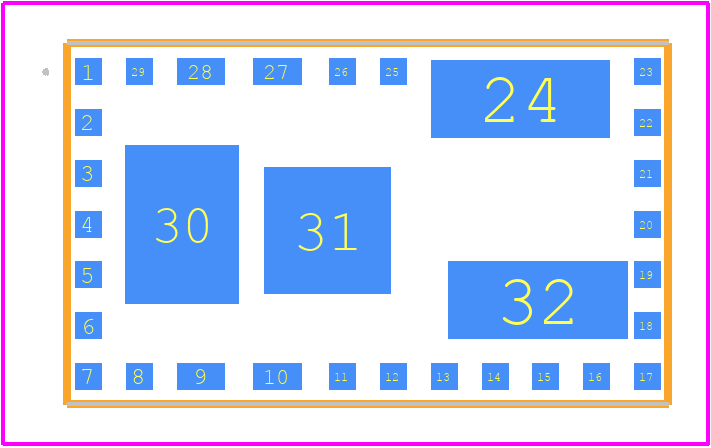

MAXM17537ALY# - Analog Devices PCB footprint - Other - Other - MAXM17537ALY#-5
click to zoom
3D Models
MAXM17537ALY# - Analog Devices - 3D model - Other - MAXM17537ALY#-5
click to zoom

MAXM17537ALY# Details

  • Manufacturer Part Number:

    MAXM17537ALY#

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    29-LGA-9X15X4.32

  • Package Description:

    MODULE-29

  • Pin Count:

    29

  • Manufacturer Package Code:

    29-LGA-9X15X4.32

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XXMA-N29

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,29LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    4.42 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    9 mm

MAXM17537ALY# Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17537ALY# involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • The selection of input and output capacitors for the MAXM17537ALY# depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAXM17537ALY# is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a narrower temperature range if possible.
  • Yes, the MAXM17537ALY# is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary standards and certifications for the target application.
  • Troubleshooting issues with the MAXM17537ALY# involves checking the device's input and output voltages, current consumption, and temperature. It's also recommended to verify the PCB layout and component selection, and to check for any signs of physical damage or contamination. If the issue persists, it's recommended to consult with Analog Devices Inc. or a qualified engineer for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAXM17537ALY# Overview

Use the download button to access the MAXM17537ALY# schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAXM1, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
