MAXM17626AMB+T - Analog Devices

Description: 2.7V to 5.5V, 600mA Himalaya uSLIC Step-Down Power Modules

Download MAXM17626AMB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

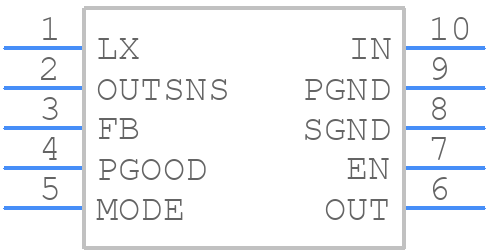

Symbol
MAXM17626AMB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17626AMB+T - Analog Devices PCB footprint - Other - Other - MAXM17626AMB+T-3
click to zoom
3D Models
MAXM17626AMB+T - Analog Devices - 3D model - Other - MAXM17626AMB+T-3
click to zoom

MAXM17626AMB+T Details

  • Manufacturer Part Number:

    MAXM17626AMB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-2.6X2.1X1.3

  • Package Description:

    USLIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-2.6X2.1X1.3

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,10LEAD,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4160 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.1 mm

MAXM17626AMB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17626AMB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to prevent oscillation.
  • The maximum input voltage that the MAXM17626AMB+T can handle is 42V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 36V to ensure optimal performance and reliability.
  • The MAXM17626AMB+T is rated for operation up to 125°C. However, it's recommended to derate the device's performance and reliability at high temperatures. It's also important to ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
  • To troubleshoot issues with the MAXM17626AMB+T, start by checking the input and output voltages, and ensure that the device is properly powered and configured. Use an oscilloscope to check for oscillations or noise on the input and output pins. Also, check the PCB layout and component values to ensure they meet the recommended specifications.
