MAXM17630AME+T - Analog Devices

Description: 4.5V to 36V, 1A Himalaya uSLIC Step-Down Power Module

Download MAXM17630AME+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

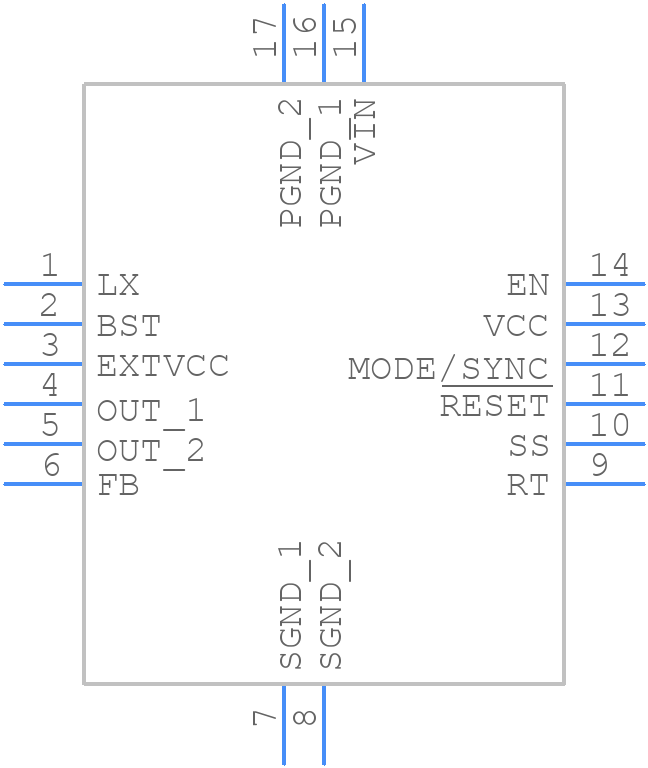

MAXM17630AME+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17630AME+T - Analog Devices PCB footprint - Other - Other - M1633+1-1.8H
click to zoom
3D Models
MAXM17630AME+T - Analog Devices - 3D model - Other - M1633+1-1.8H
click to zoom

MAXM17630AME+T Details

  • Manufacturer Part Number:

    MAXM17630AME+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-CSP_BGA_EM-3X3X1.55

  • Package Description:

    MICRO SLIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-CSP_BGA_EM-3X3X1.55

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PFM CONTROL ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQMA-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.34 V

  • Output Voltage-Min:

    3.26 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAXM17630AME+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17630AME+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The selection of input and output capacitors for the MAXM17630AME+T depends on the specific application and the desired performance. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and the input voltage range. A good starting point is to use 10uF capacitors for both the input and output.
  • The MAXM17630AME+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, the device can operate up to 85°C ambient temperature with proper heat sinking and thermal management.
  • To ensure stability and prevent oscillation, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the input and output capacitors should be chosen to ensure that the device operates within its stable region. The device's stability can be verified by checking the output voltage ripple and the device's operating frequency.
  • Yes, the MAXM17630AME+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and has a wide operating temperature range, making it suitable for use in harsh environments. However, it's essential to follow the recommended design and layout guidelines and to perform thorough testing and validation to ensure the device meets the specific application requirements.
