MB1-140-01-L-S-02-SL footprint, schematic symbol and 3D model by SAMTEC

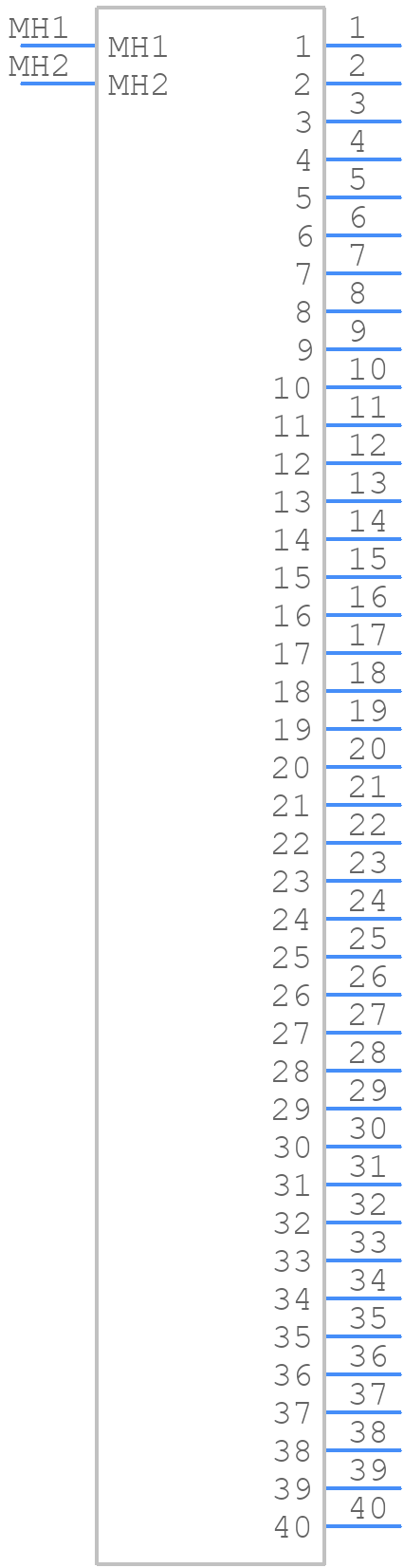

Symbol

click to zoom

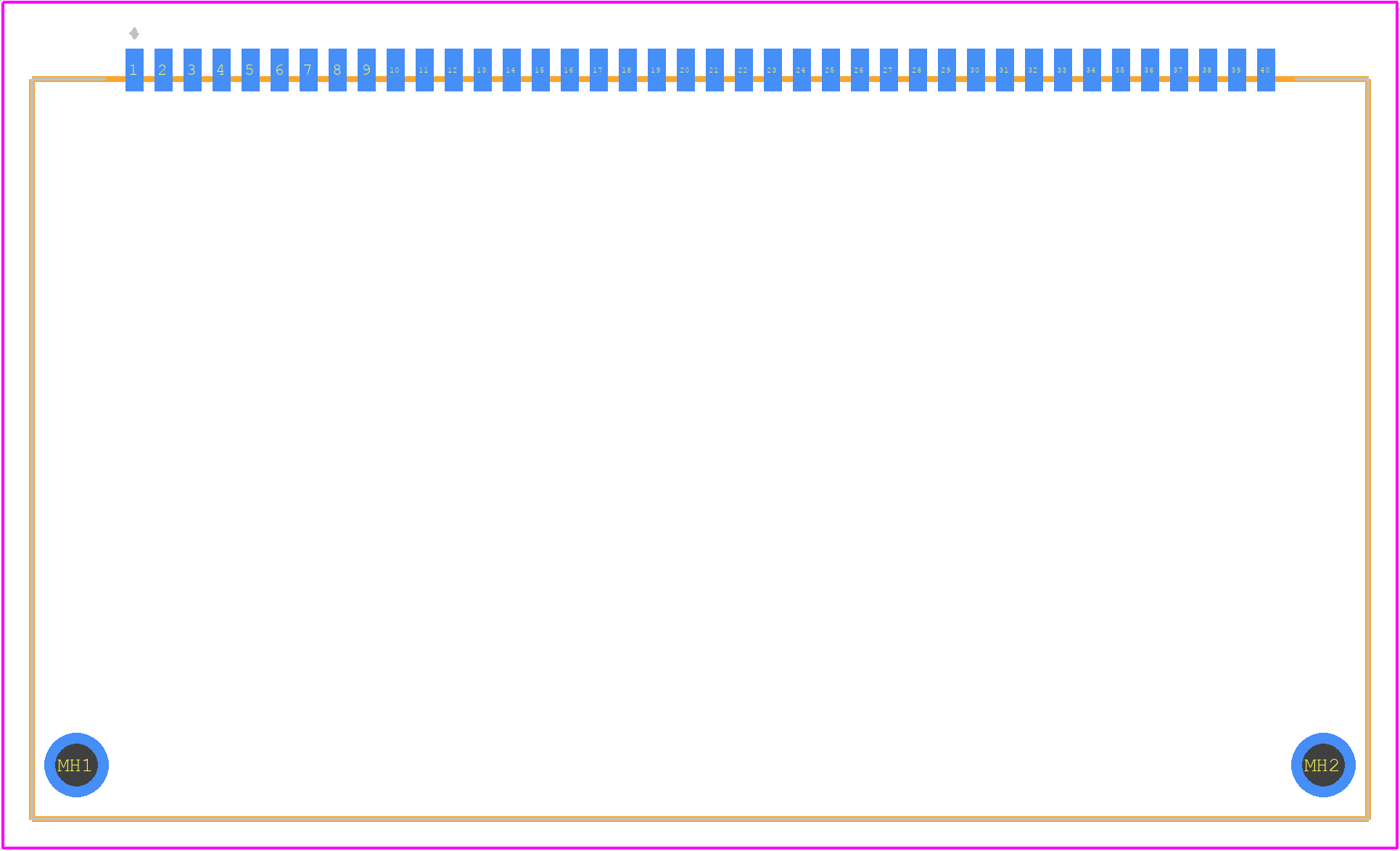

PCB Footprints

MB1-140-01-L-S-02-SL - SAMTEC PCB footprint - Other - Other - MB1-140-01-L-S-02-SL-1

click to zoom

3D Models

MB1-140-01-L-S-02-SL - SAMTEC - 3D model - Other - MB1-140-01-L-S-02-SL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MB1-140-01-L-S-02-SL
Part Number MB1-140-01-L-S-02-SL
Manufacturer SAMTEC
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - MB1-140-01-L-S-02-SL-1
Released Date Jan 9, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MB1-140-01-L-S-02-SL Details

Manufacturer Part Number:
MB1-140-01-L-S-02-SL
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
9 Weeks, 2 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
MICRO CARD
Body/Shell Style:
SOCKET
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER/BRASS
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
40

MB1-140-01-L-S-02-SL Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the MB1-140-01-L-S-02-SL connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the MB1-140-01-L-S-02-SL connector is 125°C (257°F) according to Samtec's datasheet.
The MB1-140-01-L-S-02-SL connector is not sealed and is not recommended for use in humid or wet environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector or applying additional protection measures.
The mating cycle life of the MB1-140-01-L-S-02-SL connector is 500 cycles minimum according to Samtec's datasheet.

Trust Checks

Expert Contribution

System Verified

Community Approved

MB1-140-01-L-S-02-SL Overview

Use the download button to access the MB1-140-01-L-S-02-SL schematic symbol, PCB footprint, and 3D model.
