Part Image

MB2011SS2G13 - NKK Switches

Description: Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Bracket Mount/Through Hole PC Pins

Download MB2011SS2G13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MB2011SS2G13 - NKK Switches - PCB symbol
click to zoom
PCB Footprints

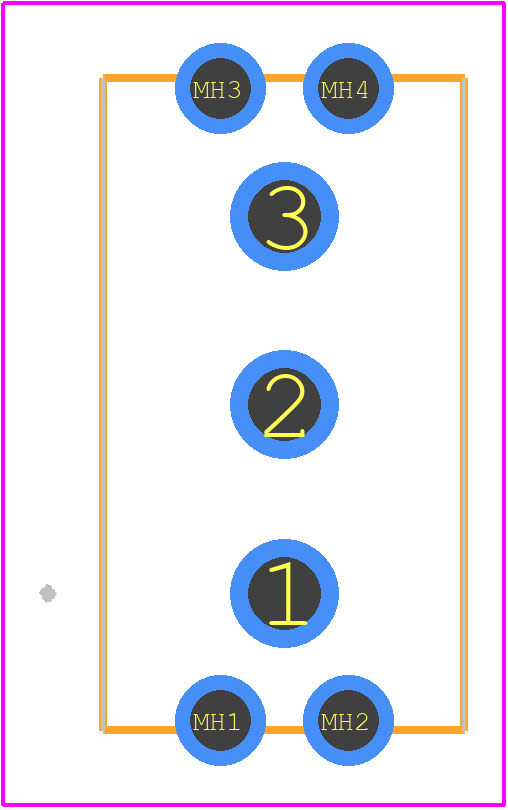

MB2011SS2G13 - NKK Switches PCB footprint - Other - Other - MB2011SS2G13-1
click to zoom
3D Models
MB2011SS2G13 - NKK Switches - 3D model - Other - MB2011SS2G13-1
click to zoom

MB2011SS2G13 Details

  • Manufacturer Part Number:

    MB2011SS2G13

  • Brand Name:

    NKK Switches

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    NKK Switches

  • YTEOL:

    0

  • Switch Type:

    MINIATURE SWITCH

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MB2011SS2G13 Overview

Use the download button to access the MB2011SS2G13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MB201, or try a keyword search, such as Pushbutton Switches

Parts related to MB2011SS2G13

Showing 0 results
