Part Image

MB85RS64TPNF-G-JNERE2 - Ramxeed

Description: F-RAM 64kbit FRAM, SPI, 1.8V 3.6V, 10MHz- SOP8 T&R

Download MB85RS64TPNF-G-JNERE2 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MB85RS64TPNF-G-JNERE2 model

Email notifications will be applied after download.

Send part feedback

Symbol

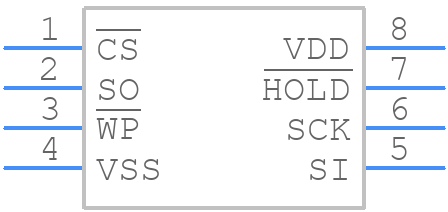

MB85RS64TPNF-G-JNERE2 - Ramxeed - PCB symbol

PCB Footprints

MB85RS64TPNF-G-JNERE2 - Ramxeed PCB footprint - Small Outline Packages - Small Outline Packages - FPT-8P-M02

3D Models

MB85RS64TPNF-G-JNERE2 - Ramxeed - 3D model - Small Outline Packages - FPT-8P-M02

Datasheet Download Datasheet
Stock & Prices Price & Stock for MB85RS64TPNF-G-JNERE2
Part Number MB85RS64TPNF-G-JNERE2
Manufacturer Ramxeed
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - FPT-8P-M02
Released Date Nov 27, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MB85RS64TPNF-G-JNERE2 Details

Manufacturer Part Number:
MB85RS64TPNF-G-JNERE2
Manufacturer:
RAMXEED

Trust Checks

Community Provided

System Verified

Community Approved

MB85RS64TPNF-G-JNERE2 Overview

Use the download button to access the MB85RS64TPNF-G-JNERE2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MB85R, or try a keyword search, such as FRAMs
