MBI5026GD footprint, schematic symbol and 3D model by Macroblock

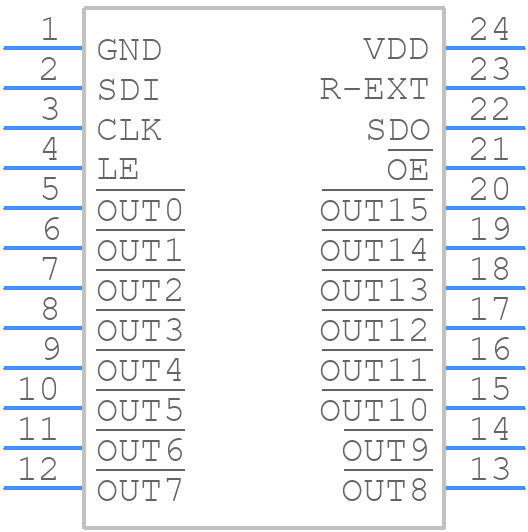

Symbol

PCB Footprints

3D Models

MBI5026GD Details

A 4-layer PCB with a dedicated thermal layer and a solid ground plane is recommended. Ensure a minimum of 10mm clearance around the device for airflow and heat dissipation.
Use a low-ESR output capacitor, minimize the PCB trace inductance, and ensure a low-impedance output stage design. Additionally, optimize the gate drive voltage and current to minimize switching losses.
A 10uF to 22uF X5R or X7R ceramic capacitor is recommended, with a voltage rating of 25V or higher. The capacitor should be placed as close to the VIN pin as possible.
Ensure proper thermal design, use a thermally conductive material for the PCB, and consider using a thermal interface material (TIM) between the device and the heat sink. Also, follow the recommended operating conditions and derating guidelines.
Keep the high-frequency switching nodes (e.g., LX, VIN, and VOUT) as short and direct as possible. Use a solid ground plane and a low-impedance return path to minimize EMI and noise.

Community Provided

System Verified

Community Approved

Use the download button to access the MBI5026GD schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MBI50, or try a keyword search, such as Display Drivers
