Part Image

MC-2227-40-06-F1 - Multicomp Pro

Description: DIP SOCKET, 40 POSITION, THROUGH HOLE; No. of Contacts:40Contacts; Connector Type:DIP Socket; Pitch Spacing:2.54mm; Product Range:MC-2227 Series; Row Pitch:15.24mm; Contact Material:Phosphor Bronze RoHS Compliant: Yes

Download MC-2227-40-06-F1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

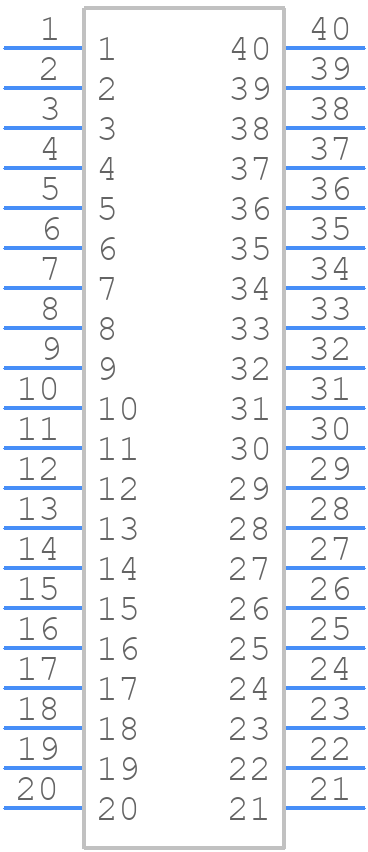

MC-2227-40-06-F1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

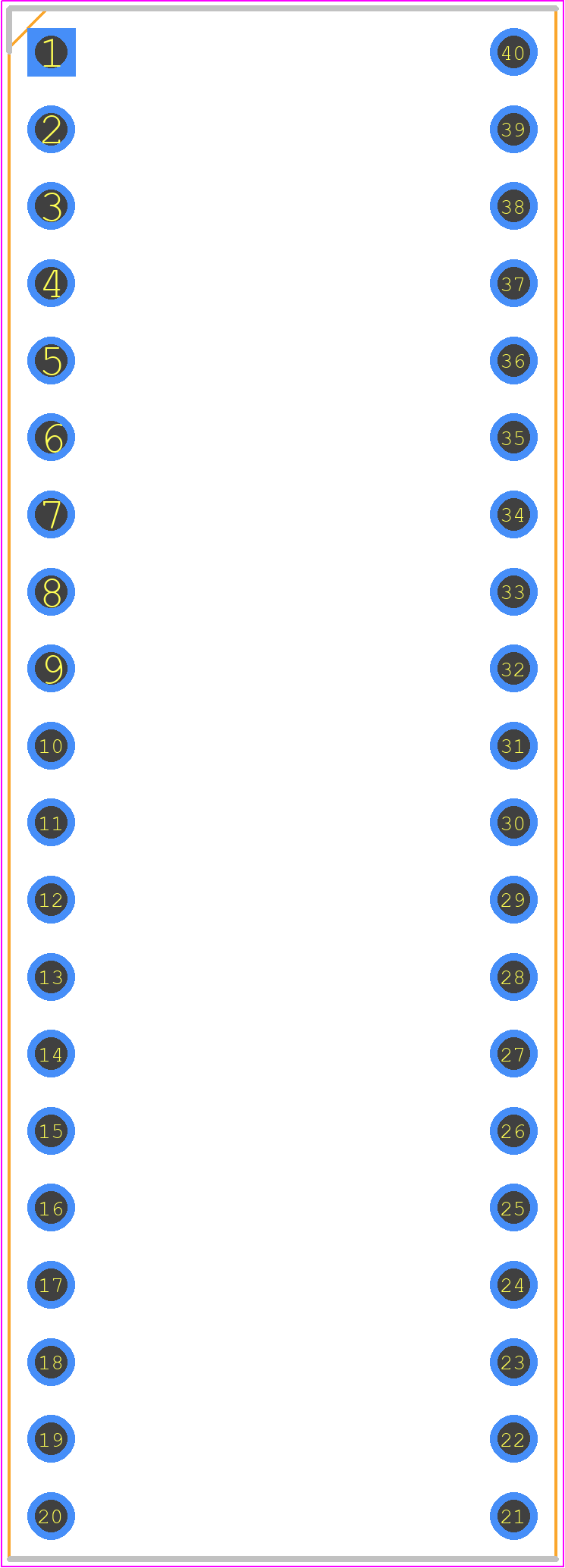

MC-2227-40-06-F1 - Multicomp Pro PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - MC-2227-40-06-F1---
click to zoom

MC-2227-40-06-F1 Details

  • Manufacturer Part Number:

    MC-2227-40-06-F1

  • Manufacturer:

    SPC Multicomp

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC-2227-40-06-F1 Overview

Use the download button to access the MC-2227-40-06-F1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MC-22, or try a keyword search, such as Sockets and Chip Carriers
