MC002077 - Multicomp Pro

Description: Barrier Terminal Block, 9.5mm, 20A 300V, with cover, 5 Poles

Download MC002077 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC002077 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

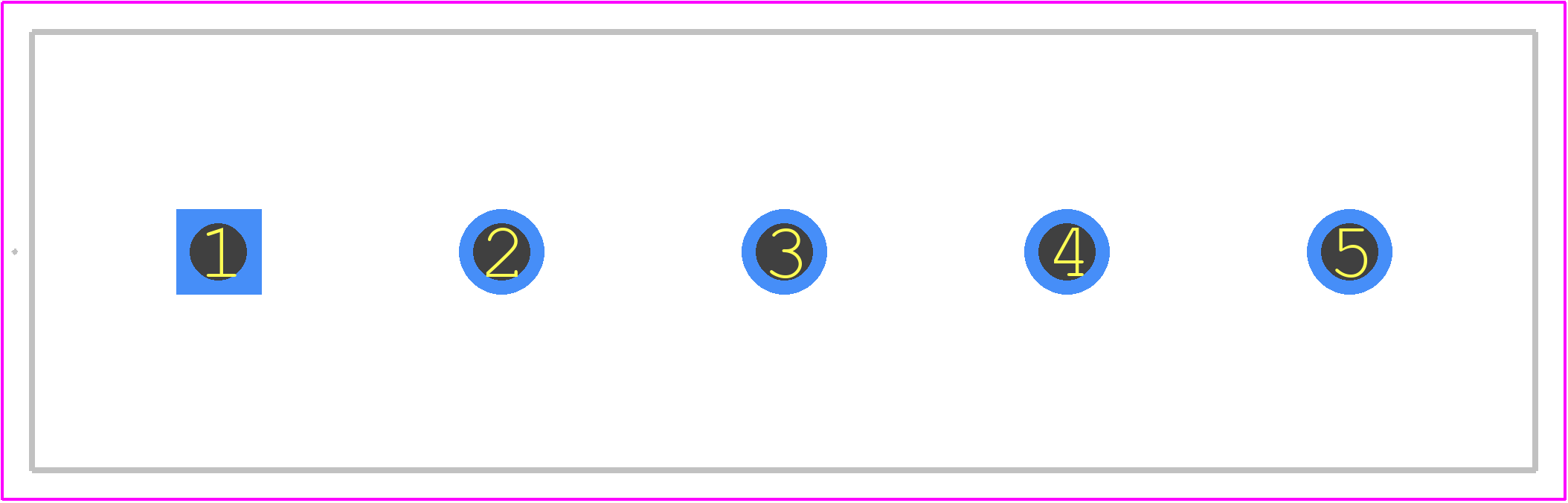

MC002077 - Multicomp Pro PCB footprint - Other - Other - MC002077-5
click to zoom
3D Models
MC002077 - Multicomp Pro - 3D model - Other - MC002077-5
click to zoom

MC002077 Details

  • Manufacturer Part Number:

    MC002077

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    6.81

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Gauge:

    12 AWG

MC002077 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for MC002077 is -40°C to 125°C.
  • Yes, MC002077 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The operating temperature range for MC002077 is -40°C to 85°C.
  • The MSL of MC002077 is 3, which means it can withstand a maximum of 168 hours of exposure to moisture before it needs to be baked or dried.
  • Yes, MC002077 is designed to withstand high-vibration applications, making it suitable for use in industrial, automotive, and other environments where vibration is a concern.
