A good PCB layout for the MC100E111FNG involves keeping the input and output traces short and matched, using a solid ground plane, and minimizing vias and bends. It's also recommended to use a 50-ohm transmission line and to terminate the output with a 50-ohm load.
To ensure proper biasing, connect the VCC pin to a 3.3V or 5V power supply, and the VEE pin to ground. The input signal should be AC-coupled and biased to the midpoint of the supply voltage using a voltage divider or a bias tee.
The MC100E111FNG is specified to operate up to 1.1 GHz, but it can be used at higher frequencies with some degradation in performance. However, it's recommended to consult with onsemi's application engineers for specific guidance on using the device above 1.1 GHz.
The MC100E111FNG has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving airflow, and minimizing power dissipation.
The MC100E111FNG has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. This includes using an ESD wrist strap, working on an ESD mat, and storing the device in an anti-static bag.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MC100E111FNG Overview

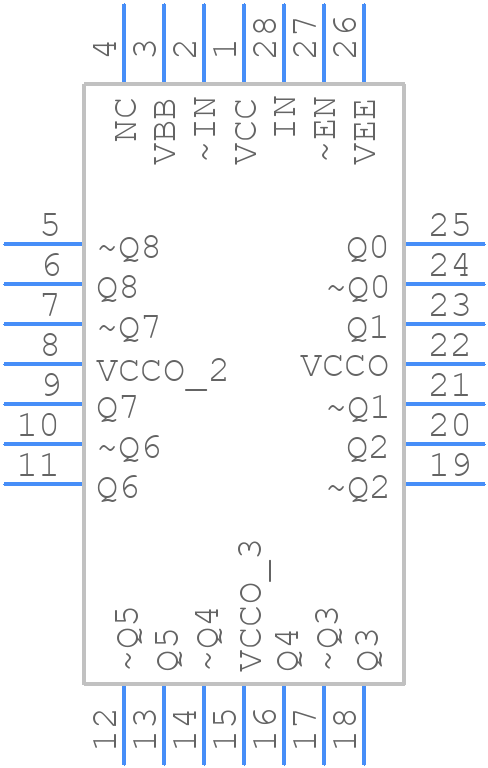

Use the download button to access the MC100E111FNG schematic symbol and PCB footprint.
