MC100E116FNG - onsemi

Description: ON Semiconductor MC100E116FNG, Bus Buffer, 500ps, -4.2 → 5.7 V, 28-Pin PLCC

Download MC100E116FNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

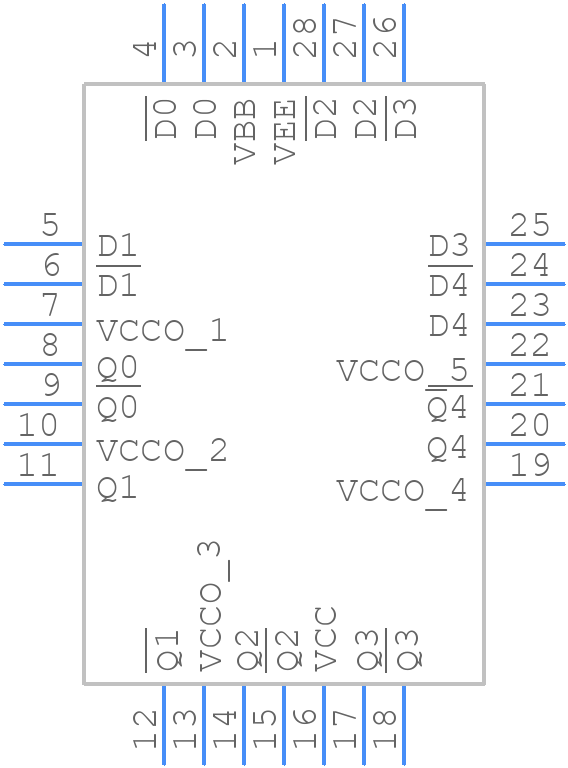

MC100E116FNG - onsemi - PCB symbol
click to zoom
PCB Footprints

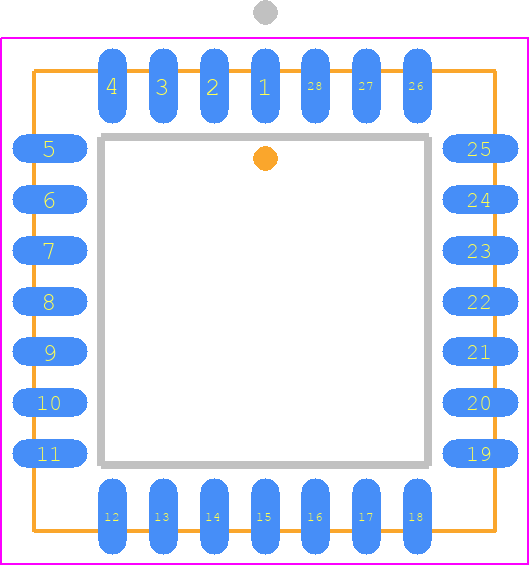

MC100E116FNG - onsemi PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PLCC-28 CASE 776-02 ISSUE F
click to zoom

MC100E116FNG Details

  • Manufacturer Part Number:

    MC100E116FNG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Package Description:

    LCC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    776-02

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO OPERATE WITH -4.2V TO -5.7V SUPPLY IN NECL MODE

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e3

  • Length:

    11.505 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    5

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    0.45 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    5.7 V

  • Supply Voltage-Min:

    4.2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.505 mm

MC100E116FNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100E116FNG involves keeping the input and output traces short and matched, using a solid ground plane, and minimizing vias and bends. It's also recommended to use a low-impedance power supply and to decouple the power pins with capacitors.
  • Proper termination of the MC100E116FNG involves using a combination of series and parallel resistors to match the impedance of the transmission line. The datasheet provides guidelines for termination, but it's also recommended to consult with a signal integrity expert or use simulation tools to ensure optimal termination.
  • The MC100E116FNG has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.
  • The MC100E116FNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize static electricity.
  • The recommended power-up sequence for the MC100E116FNG involves applying the power supply voltage (VCC) before the input signals. This ensures that the device is properly biased and configured before the input signals are applied.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC100E116FNG Overview

Use the download button to access the MC100E116FNG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100, or try a keyword search, such as Line Driver or Receivers
